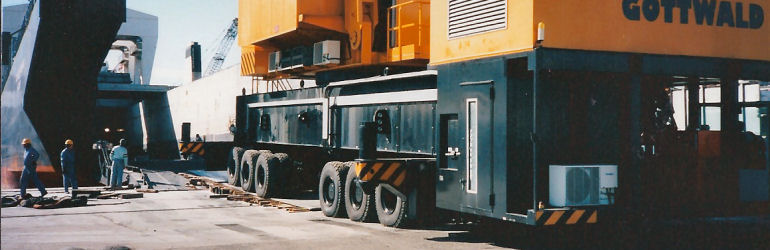

RELOCATION 2 GOTTWALD CRANES TO ARGENTINAProject SummaryIn May 1995, two Gottwald mobile harbor cranes were transported from Miami to Buenos Aires aboard the heavy-lift dockship STAKHANOVETS YERMOLENKO. The cranes (each weighing approx. 330 t) rolled onboard over the stern ramp under their own power and were secured to the deck with steel pipes welded to the deck. For the transport, the boom ends were lowered onto special supports, allowing for deflection of the ship hull in seaways. For the unloading the mobile cranes, the additional power of four tractors were needed in order to overcome the large slope caused by the ship's excessive trim, required to reach the high quay. See photograph below.
The project scope included: |
specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors
If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992
Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
| Home | Services | Projects | News | Clients | Publications | References | About Us | Contact Us | Client Login |
■
Supervision of the loading operation in Miami, FL;
■
Determine design environmental criteria for the transport;
■
Stability and ship motion analysis;
■
On-site design of seafastenings and supervision of the local contractor during installation;
■
On-site design of boom support;
■
Designs of lashings for additonal cargo and loose crane parts;
■
Supervision of offloading operation upon arrival of the ship in Buenos Aires, Argentina.

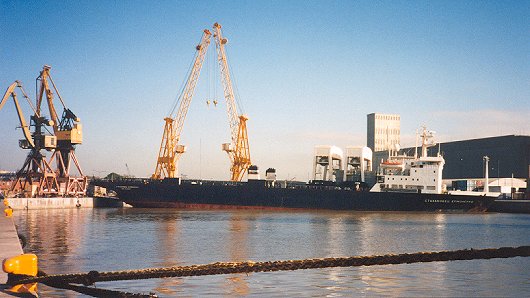

The STAKHANOVETS YERMOLENKO trimmed by the bow for offloading of the cranes
|

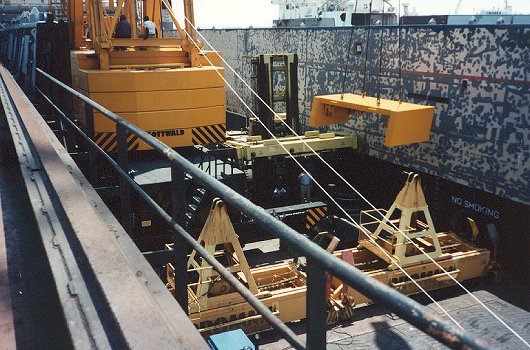

| Stowing loose cargo items |
|

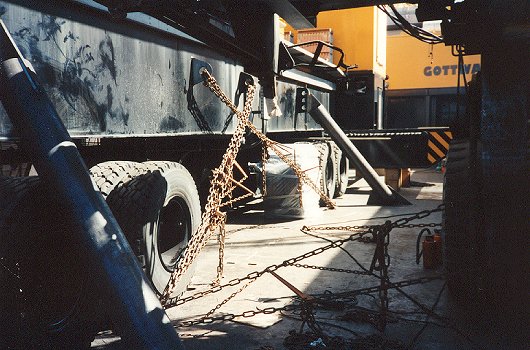

| Seafastening detail |
|

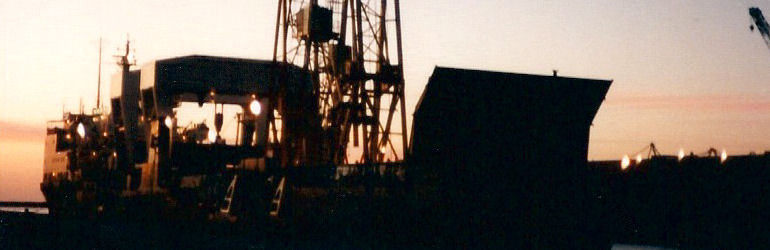

| Vessel arrived in Buenes Aires |
|

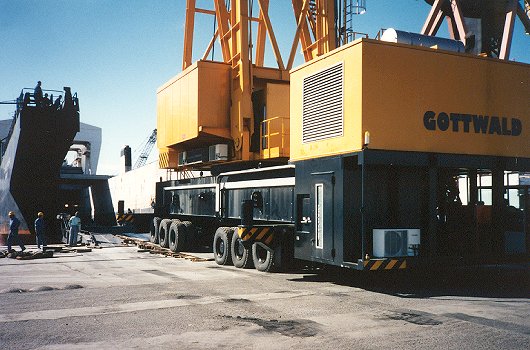

| Second crane rolled off |
