Project Summary

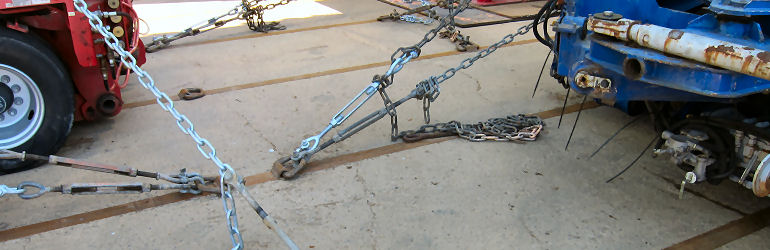

In August 2018, Argonautics Marine Engineering, Inc. provided on-site assistance during the offload of 4 barge loads of refinery modules and ducts, using two barges of opportunity. These were loaded in Port Everett and the modules were lashed to the barges as per the engineered seafastening plans. After the tow up to Cherry Point beach, each barge was grounded and the modules were rolled offf over the bow usig SPMTs. The largest modules weighed 215 ST. While rolling the modules off, ground reaction was controlled by (de)ballasting the barges in conjunction with the tide. The empty barge was pulled offf the beach before low water and returned to Port Everett to be reloaded.

During these challenging offload operations, on-site support was provided to the offload contractor.

Scope of Work

The project scope included:
  Check stowage plans and barge stability;
  Design lashing plans for each barge tow;

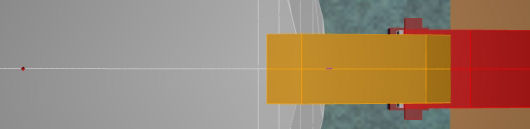

  Design ballast plans based on estimated arrival times and offload sequence and timing;
  Provide on-site assistance during the actual offload operations;
  Provide comprehensive reports on the operations.

Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2018 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

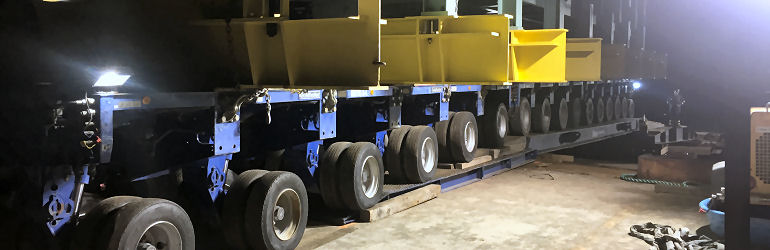

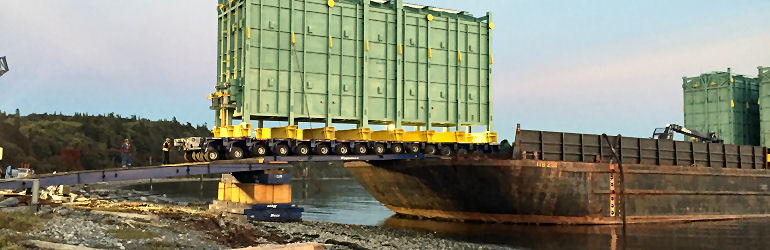

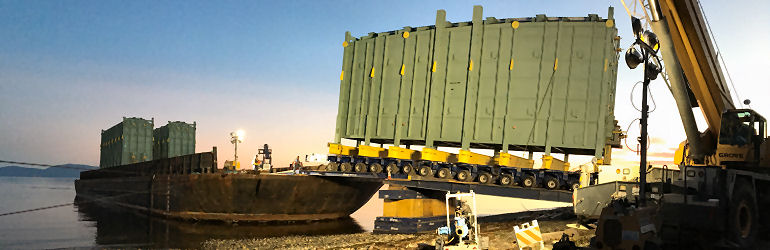

Radiant module rolled off over steel ramp

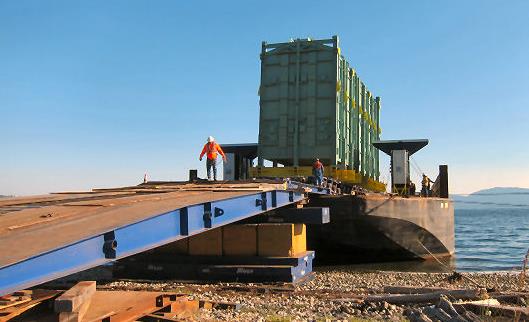

Radiant module ready to roll off the grounded barge

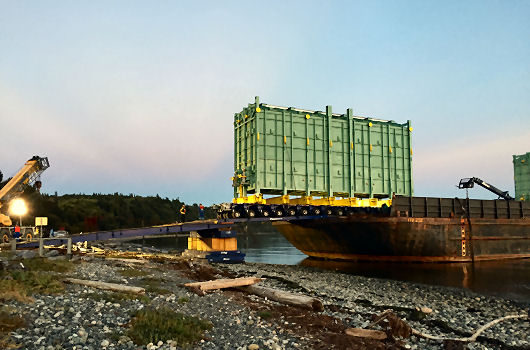

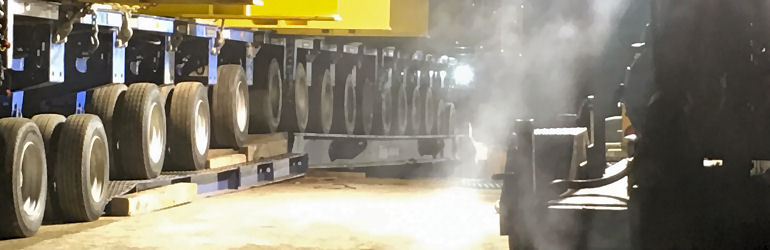

Rolling off radiant module
Rolling off radiant module

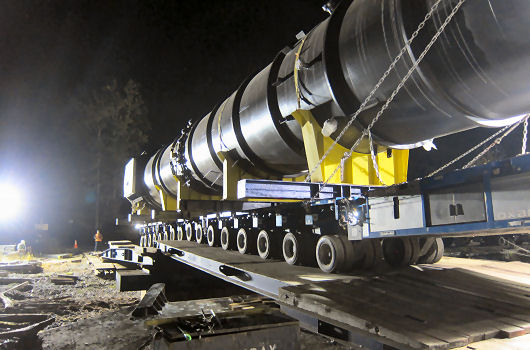

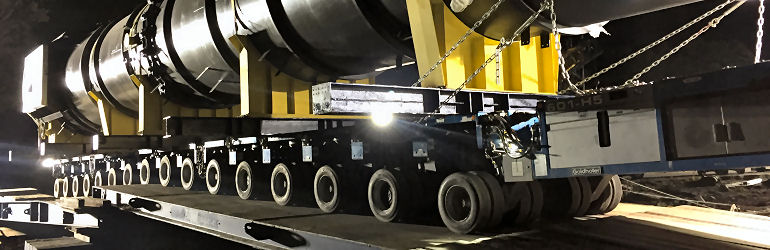

Rolling off stack
Rolling off stack

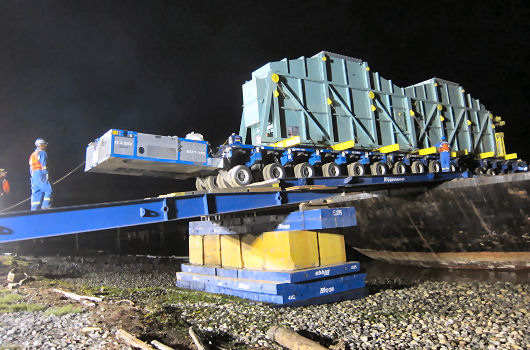

Rolling off convection module
Rolling off convection module

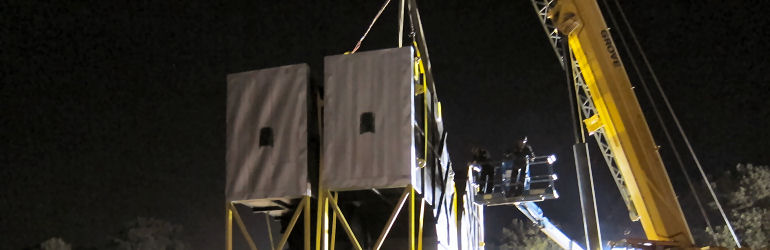

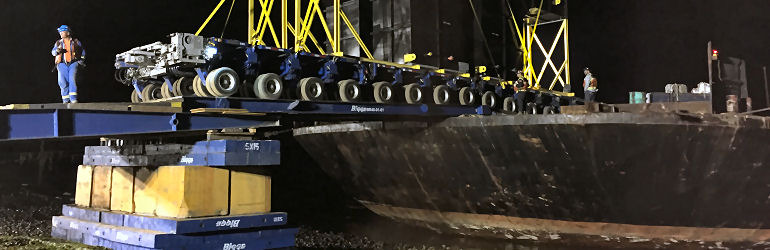

Rolling off ducts lashed to lowbead trailer
Rolling off ducts lashed to lowbead trailer
