OFFLOADING ROTOR AT TURKEY POINT POWER PLANT

Project Summary

Early January 2012, Argonautics Marine Engineering, Inc. provided on-site assistance during the offload of a new generator rotor. This rotor, weighing 165 t was delivered by spud barge to the FPL Turkey Point power plant in Florida. The barge KS-1503 was moored at the offload slip and secured. A steel ro/ro ramp was installed to span the gap between the barge bow and the dock. After unlashing, the rotor was picked up with a 10 axle Kamag trailer and rolled off onto the dock and lowered onto temporary supports. No ballasting was required during the offload. The following day, the rotor was picked up again and moved into the plant.

During this offload operation, on-site support was provided to the offload contractor.

Scope of Work

The project scope included:
  Provide on-site assistance during the actual offload operation;
  Provide comprehensive reports on the operations.


Project Photographs
















specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors


If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992


Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Turbine rotor rolled off over steel ramp
First turbine rotor safely offloaded

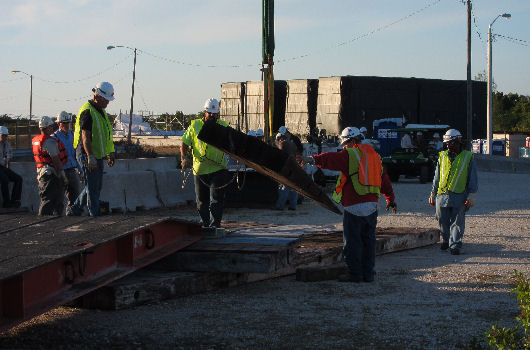

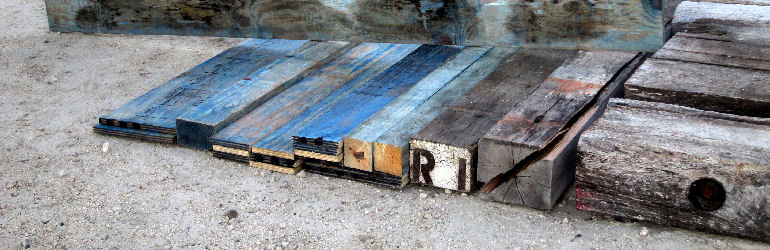

Building ramp support and approach
Building ramp support and approach

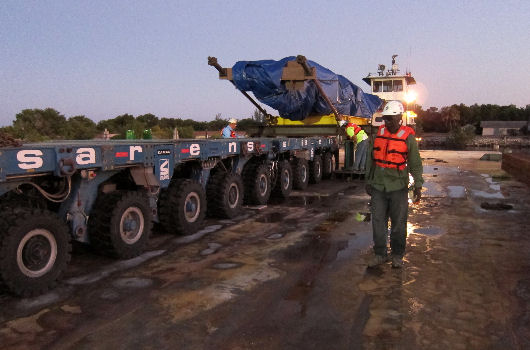

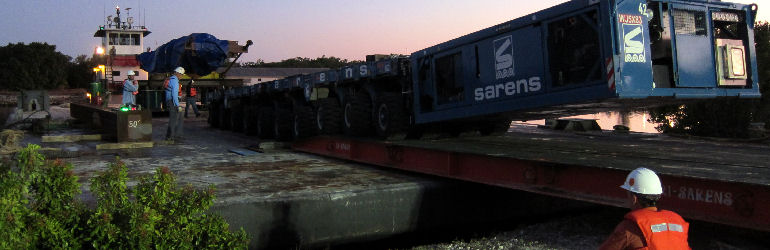

Empty trailer rolling under rotor
Empty trailer rolling under rotor

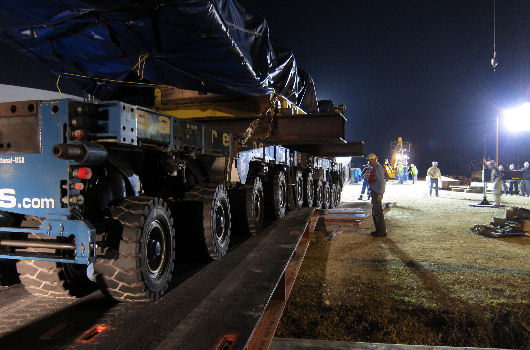

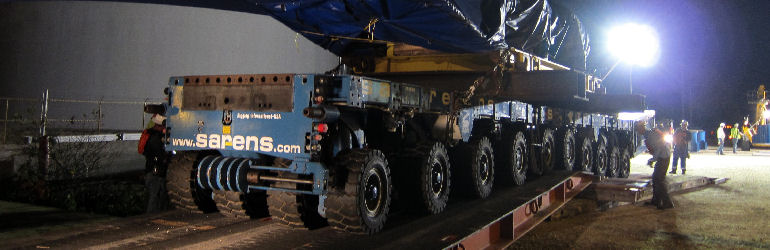

Trailer rolling down the ramp
Trailer rolling down the ramp

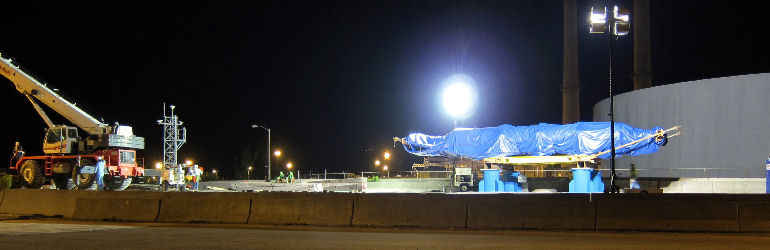

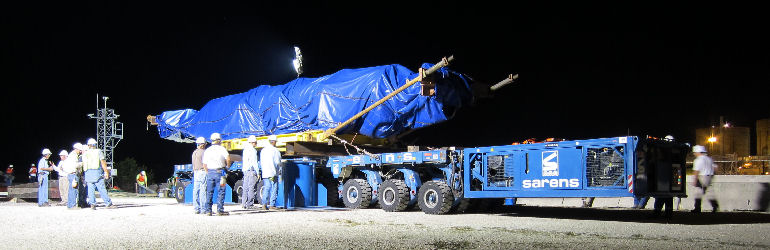

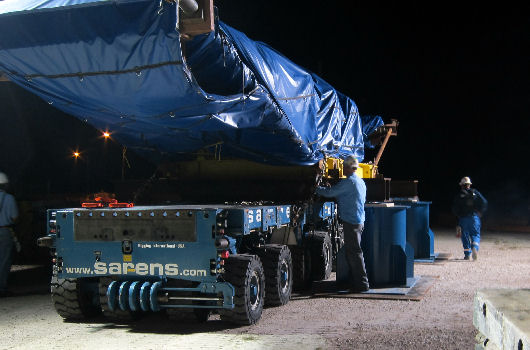

Rotor over shore supports
