Project Summary

To tow the large floating offshore platform INDEPENDENCE HUB from its outfitting yard in Ingleside, TX, to its offshore installation location in the US Gulf, a large number of local harbor and ocean going tugs were deployed. Detailed drawings were made for each phase of the tow-out, showing where each tug was to be positioned and where it was connected to. Contact between the tug fenders and platform push boards was checked and potential interference problems were identified.

Scope of Work

The project scope included:

Project Photographs

Photographs courtesy of Signet Maritime Corporation (copyright Rob Redding).

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Survey the pre-installed tug attachment and push points on the platform;
Update local tug data base;
Verify compatibility of tug fenders with push points;

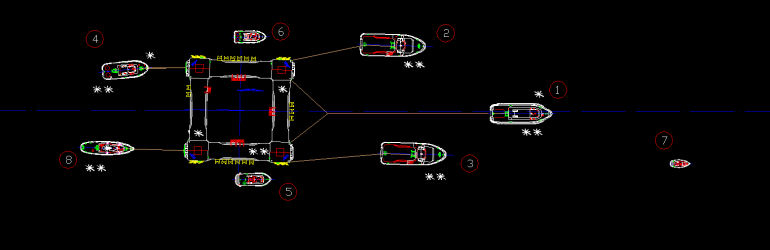

Provide detailed tow configuration drawings of the various tow-out stages, such as unmooring, La Quinta Channel Passage,
Corpus Christi Channel passage, and offshore tow.

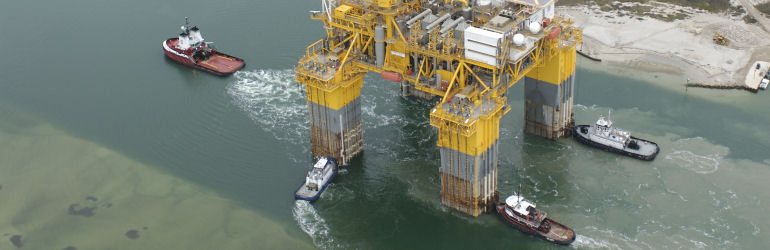

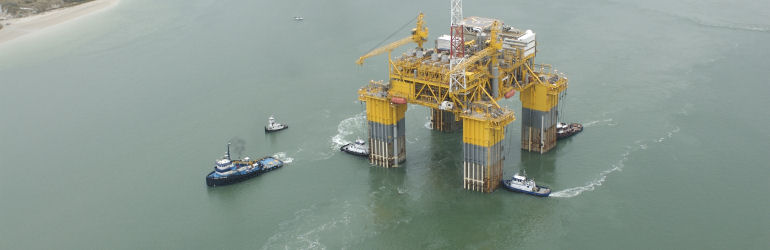

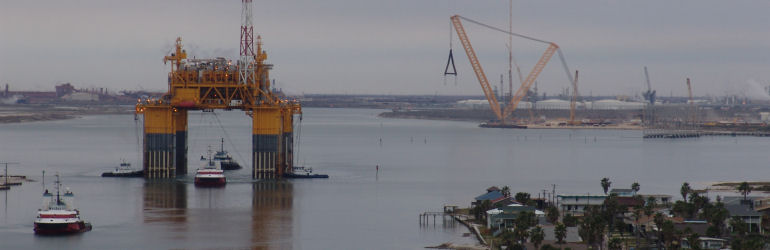

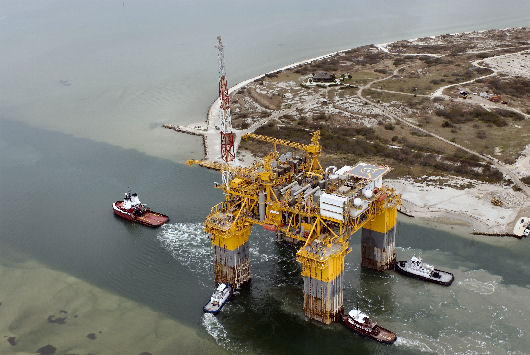

Independence Hub leaving Ingleside

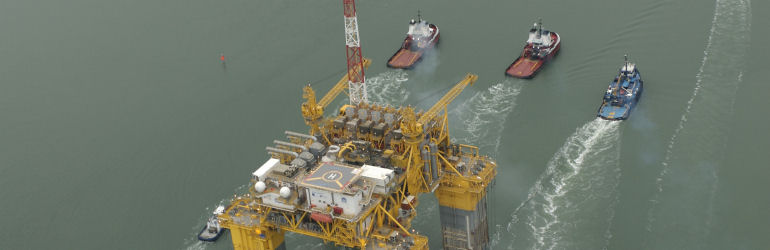

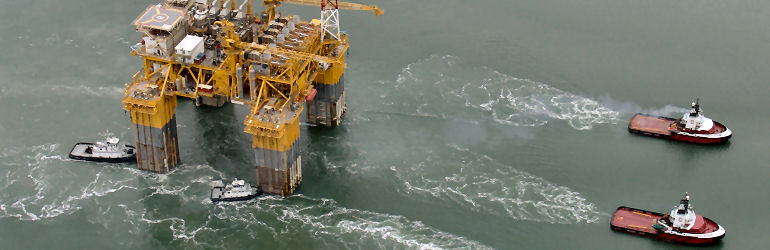

INDEPENDENCE HUB under tow through the narrow La Quinta Channel
