Project Summary

In September 1995, the BP Emergency Standby Vessel IOLAIR was purchased by Reading & Bates, for conversion into a Workover/Well Intervention Vessel. The IOLAIR is a self-propelled, twin hull, six column stabilized, semi-submersible type vessel.

The proposed conversion included removal of some of the top structures, removal of the fire-fighting systems, closing of the dive tube and wave surge tank and the addition of a large derrick set and well stimulation equipment. These changes significantly affected the vessel's center of gravity as well as its wind area. The converted vessel had to meet the 1990 Department of Energy's Fourth Edition guidelines and the Lloyd's Register of Shipping requirements. Argonautics Marine Engineering, Inc. was hired to assist with the stability analysis of the vessel.

Scope of Work

The project scope included:

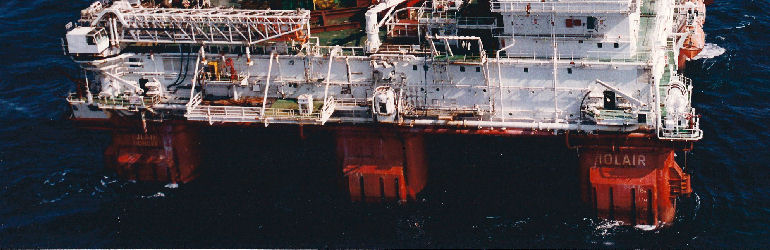

Project Photograph

Photograph courtesy of Reading & Bates Development Company.

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

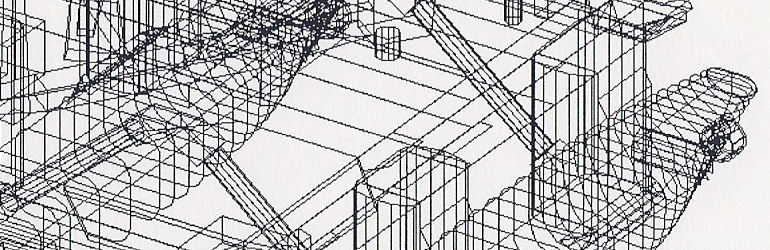

Modeling of the hydrodynamic part of the semi-submersible vessel;
Modeling of the wind areas of the vessel;

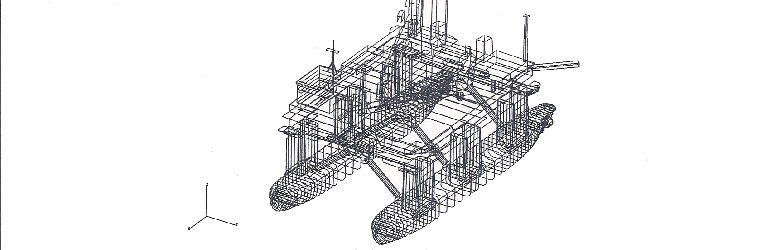

Intact stability analysis of the vessel before and after conversion using StabCAD;
Damaged stability analysis of the vessel before and after conversion using StabCAD;
Establishing the new allowable KG curve and resulting deck load capability;
Comparison of various sponson configurations to improve the IOLAIR's stability/deck load capability.

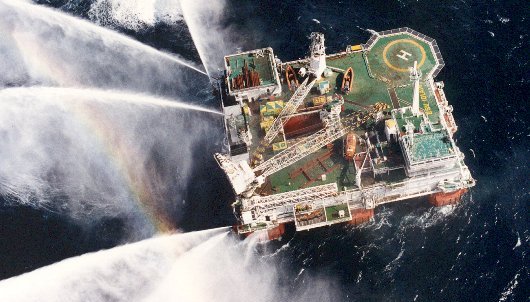

Iolair testing the fi-fi equipment
The pre-conversion IOLAIR testing its fi-fi equipment
