Project Summary

In June 1999, the Dock Express 10 delivered one each 4-th generation container crane to the Trans Pacific Container Service Corporation terminals in Oakland, CA and Los Angeles, CA, respectively. The cranes were built by Mitsui Engineering & Shipbuilding Co., Ltd. in Japan and Dockwise Shipping BV was contracted for the delivery. These cranes were transported together, fully erect, with the boom of the aft Oakland crane supported on the APEX of the forward Los Angeles crane.

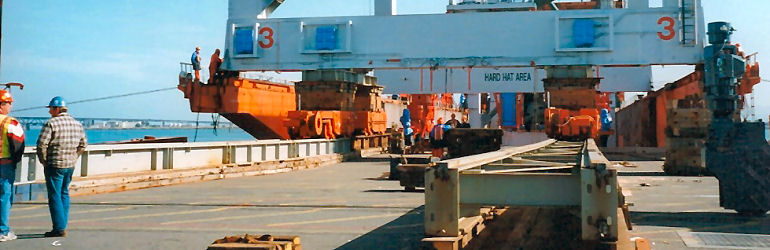

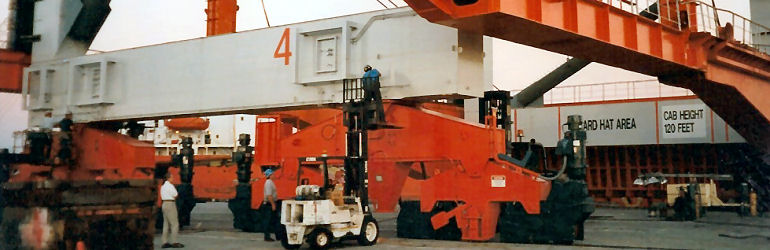

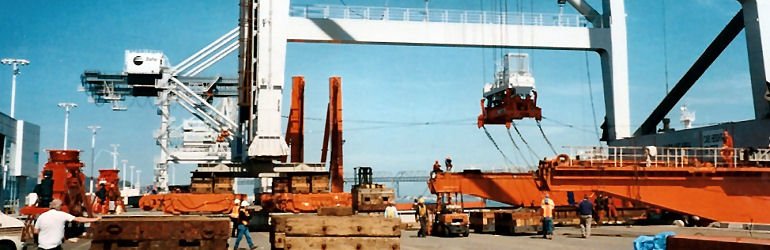

Argonautics Marine Engineering, Inc. was hired to supervise the offloading operations. The Oakland crane was offloaded, using the so-called "Miami" method offloading. After removal of the boom supports and tie downs, the 1,000 t crane was skidded aft over the ship's outriggers until the crane's landside sill beam could be lowered onto a set of jack boogies, which moved the crane further over the quay. Once in position, the waterside sill beam was temporarily supported on wood blocks.  The landside was then jacked up for installation of the landside trucks. The ship was then moved forward, the waterside was picked up so that the waterside trucks could be rotated after which the waterside trucks were lowered onto the rails. After reloading of the offloading equipment, the DOCK EXPRESS 10 sailed to Los Angeles for delivery of the second crane.

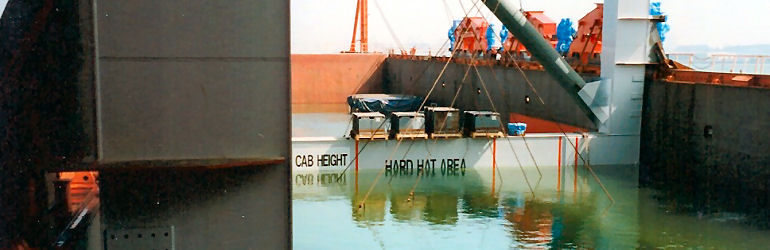

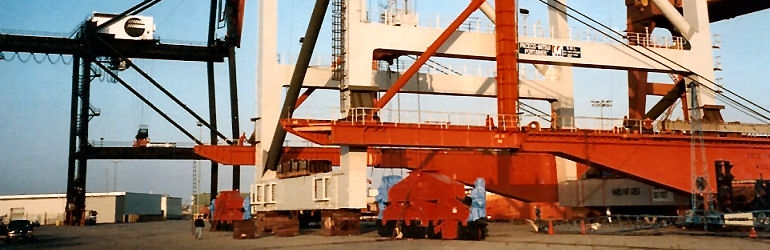

Because of the height restriction of the Vincent Thomas bridge, the crane was stowed inside the cargo hold as low as possible. The bridge passage even required this hold to be partly filled with ballast water to increase the vessel's draft as much as possible. The 1,000 t crane was offloaded by skidding it aft over the outriggers and landing it on wood blocks on the quay. In two steps, the crane was lifted higher after which the trucks could be installed.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Coordination of activities during offloading;
Liaison with ship crew, client and its subcontractor, Bickerton Ironworks;
In Oakland: setting-up of rail track and jack boogies as per the Dockwise Offloading Procedure;
In Los Angeles: setting-up of wood blocks as per the Dockwise Offloading Procedure;
Provision of on-site supervision during offloading operations.
Dock Express 10 arrives with 2 Mitsui container cranes

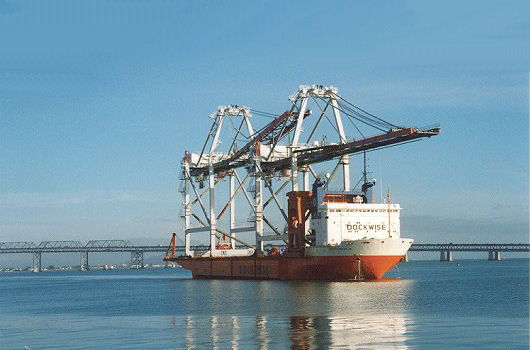

DOCK EXPRESS 10 arrives in Oakland with 2 Mitsui container cranes
Getting in position to offload the first crane
Getting in position to offload the first crane

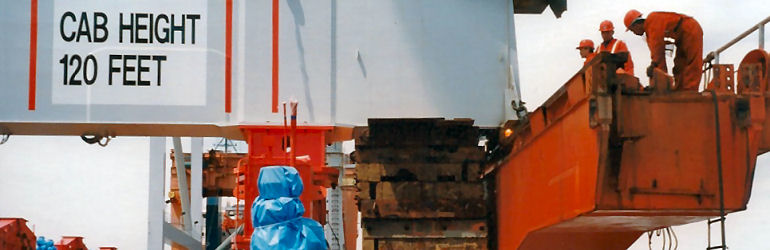

First crane land set set on boogies
First crane land set set on boogies
Apex sheaves clearing Vincent Thomas bridge
Apex sheaves clearing Vincent Thomas bridge

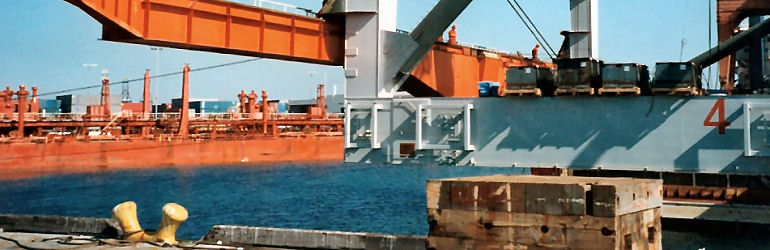

Setting down second crane
