Project Summary

In March 1992, two Mitsui-built fourth generation (post-Panamax) container cranes were transported from Tamano, Japan to Long Beach, California on the SUPER SERVANT 1. The container cranes (each weighing approx. 850 t) were built with the boogies rotated 90 degrees. Using two 10 meter long steel link beams and rails on deck, the cranes were rolled onboard over the stern and secured to the deck with steel corner boxes. The booms were up during the transport, giving the cranes a total height in excess of 90 meters. In Long Beach, the cranes were rolled off over the stern, jacked up for rotation of the boogies and lowered onto their rails.

Scope of Work

The project scope included:

Project Photograph

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Assisting during the loading operation in Tamano, Japan;
Survey of offloading location and coordination with local authorities;
Preparation of scope of work for local subcontractor, hired for removal of seafastening;
Supervision of the offloading operation upon arrival in Long Beach, California.

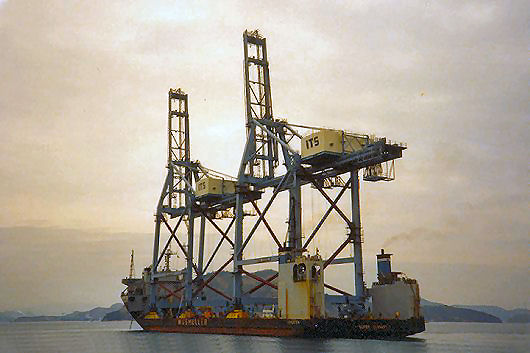

Super Servant 1 leaving Tamano
SUPER SERVANT 1 heaving anchor to commence voyafe to Long Beach
