Project Summary

In October 2005, the Beaver Valley Power Station replacement steam generators and reactor head were delivered by heavy lift barge PAUL BUNYAN and offloaded upon arrival at a special slip in Shippingport, PA. The barge was carefully ballasted down and grounded. Hydraulic multi-wheel trailers were rolled onboard and each 350 t heavy generator was rolled off and moved to the power plant for installation. Lastly, the 60 t heavy reactor head was rolled off.

Argonautics Marine Engineering, Inc. was hired to provide detailed procedures for mooring, pre-ballasting and grounding the barge including maintaining adequate and safe bottom reaction throughout the four roll-off operations.

Scope of Work

The project scope included:


Project Photograph
Photographs courtesy of Rigging International, Inc.

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Detailed ballast procedure for grounding the barge and maintaining bottom reaction throughout the offloading operations;
Ballast procedure to re-float the barge after completion of the roll-off operations;
Safety procedures;
Mooring calculations.

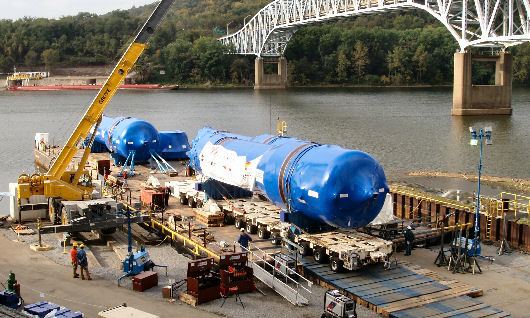

Generator rolled off barge

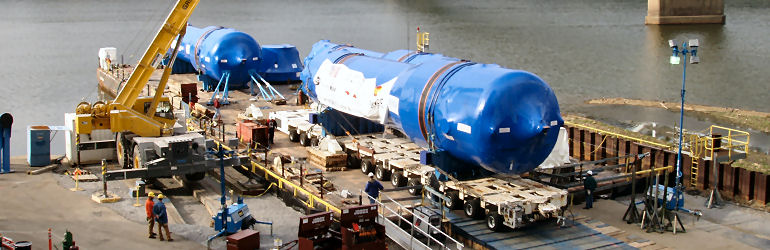

The first generator being offloaded from the cargo barge PAUL BUNYAN
