OCEAN BARONESS DRY TRANSPORT
Project SummaryIn October 2000, the semi-submersible drilling rig OCEAN BARONESS was dry transported from the US Gulf to Singapore by the heavy-lift ship MIGHTY SERANT 1. Because this was the first time a rig of this type (4 tubular floaters, 12 columns) was dry transported, a structural analysis of the rig was reviewed. An existing detailed StruCAD*3D model of the rig was modified and used to study the behavior of the structure when subjected to the design dynamic loadings of the transport. The FEM analysis showed that most beam and plate stresses were within the allowable limits, but beam seas headings should be avoided.
Scope of WorkThe project scope included:

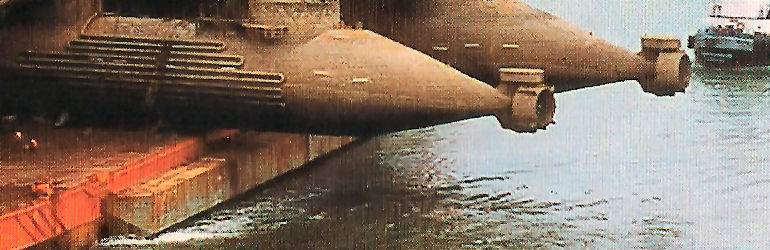

Photographs courtesy of MatthewsDaniel.
specialists in marine heavy-lift transportation engineering
If you can read this and do not see a MENU here, please allow for scripts to run
Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
| | | | | | | | | | |
||Check environmental criteria and provide independent motion response data;
Review available structural analysis of the rig at the client's office;
||Define sea state limitations, as function of wave period and heading.

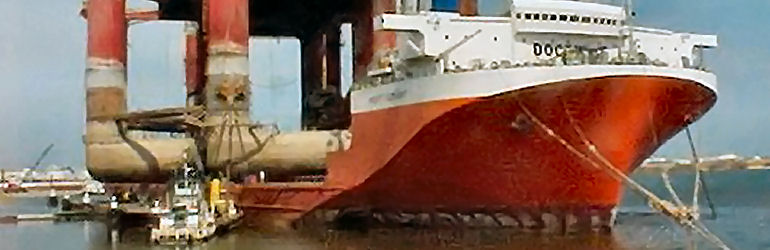

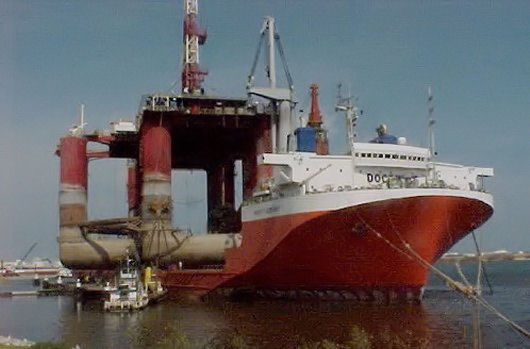

OCEAN BARONESS loaded on the MIGHTY SERVANT 1
