Project Summary

In July 1993, 6 rubber tire transtainers and 2 container cranes were transported from Portland, OR, and Los Angeles/Long Beach, CA, to Nanjing, China. A hydraulic jack and skid system was used for loading and offloading of the cranes. The cranes were stowed transversely on the heavy-lift ship SUPER SERVANT 4 in order to minimize the required internal strengthening and to facilitate a sideways offloading in the Yangtze river where strong currents prohibit a Mediterranean mooring. It is believed that this is the first time fully erected container cranes were transported athwardships, nowadays a common practice.

Argonautics Marine Engineering, Inc. was hired to do the transport engineering and supervise the actual loading operations of the transtainers in Portland and of the container cranes in Los Angeles/Long Beach. Upon arrival of the ship in China, Argonautics Marine Engineering, Inc. also supervised the offloading of all equipment.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Preparation of optimum stowage configuration;
Preparation of loading and offloading procedures, including ballast procedures;
Transportation analysis and preparation of a complete Transport Manual;
Design of seafastening bracings for the container cranes based on the design ship motions;
Check of local strength of the heavy-lift ship's deck subjected to large point loads.
Skidding aft crane off over side
Skidding aft crane off over the side

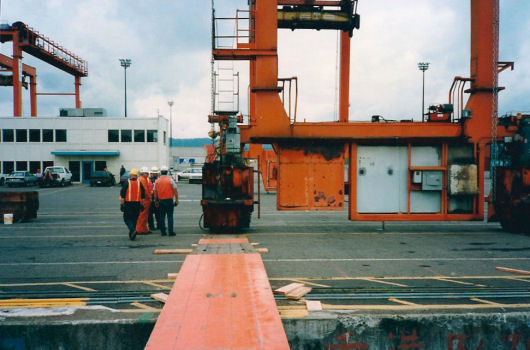

Rolling on RTG in Portland
Rolling on RTG in Portland

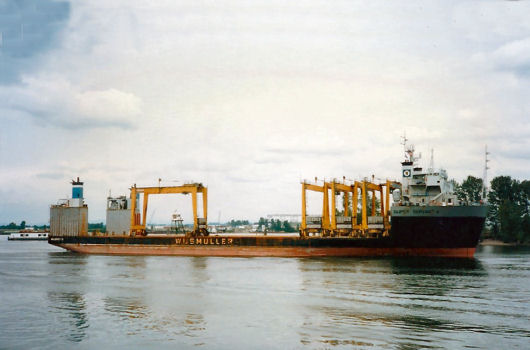

Ship departs Portland with RTGs
Ship departs Portland with RTGs

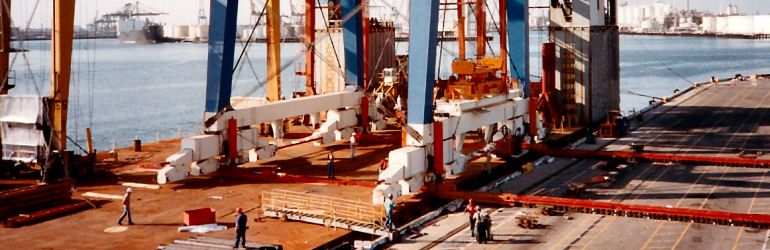

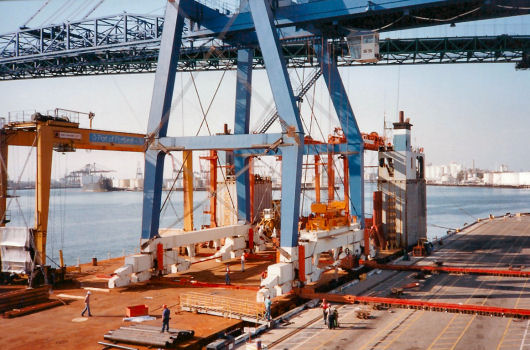

Loading first crane over the side
Loading first crane over the side

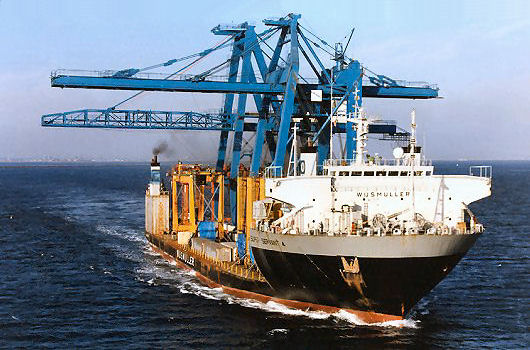

SUPER SERVANT 4 with cranes enroute
SUPER SERVANT 4 with cranes enroute
