Project Summary

No longer needed in Oakland, 2 low-profile Kocks container cranes plus 4 rubber tire gantry cranes (RTGs) were relocated from there to the Conley Container Terminal in South Boston in late summer of 2010. Argonautics Marine Engineering, Inc. assisted with the design of the seabracings for the cranes and RTGs, using detailed FE models. The cranes, weighing approximately 1,100 t each, were loaded onto the 402 x 100 ft cargo barge CHICAGO BRIDGE using 4 skid tracks and 8 skid shoes. The RTGs were rolled on board over the stern, immediately after loading of the first crane. After loading, the cranes and RTGs were secured with pipe bracings. Loose items and skid equipment were secured with welded clips and/or chain lashings.

On August 2, upon receipt of the tow approval certificate, the tug and barge departed Oakland, with destination Boston, via Panama Canal. After successfully avoiding some tropical storms and hurricanes, the tow safely arrived in South Boston on September 11. A few days later, the RTGs were rolled off onto the dock over the barge side. Days later, in between cruise ships arrivals and departures at the opposite berth, and while dealing with a 10 ft tide range, the cranes were successfully offloaded and lowered onto their new rails, ready for many more years of operation under the flight path for Logan International airport.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Loading and offloading ballast calculations;

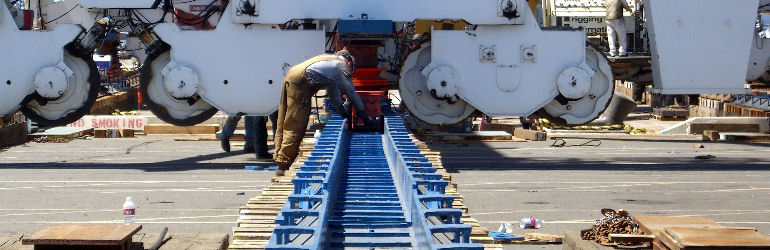

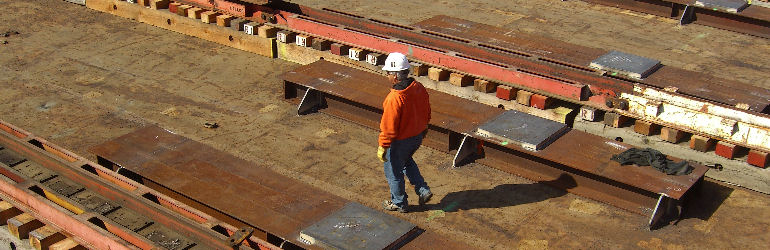

Check barge deck strength for high local skid track loads during skidding and high wheel support loads during the tow;
Design criteria and resulting barge motions/crane accelerations;

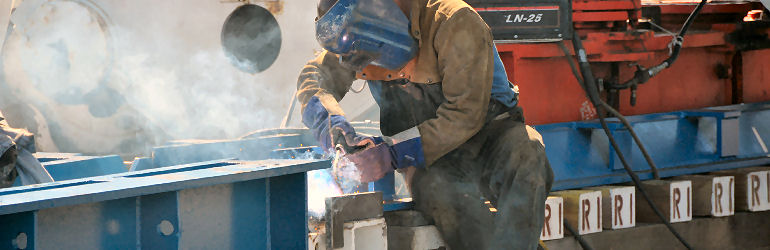

Design of the crane reinforcements and seafastening plan, based on a preliminary proposal;
Design of the RTG reinforcements and seafastening plan;
Attend the loading operations in Oakland;

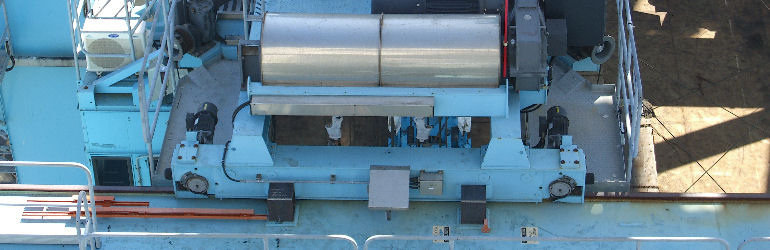

Survey the cranes and RTGs with respect to tow readiness and internal securings;
Survey the seafastenings of the cranes, RTGs, the miscellaneous cargo items, and all loading equipment;
Inspect the barge and its towing connections;
Inspect the 3,000 hp coastal tug Colonel and its towing gear;
Attend the offloading operations in South Boston.

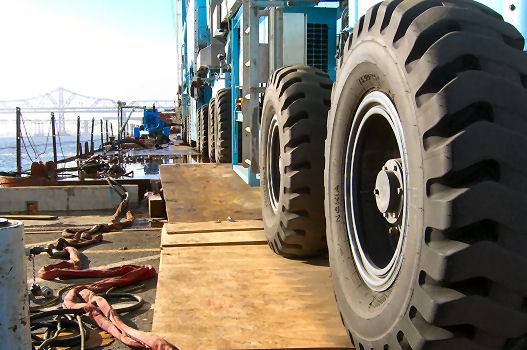

Loading RTGs after loading 1-st crane
Loading RTGs after loading 1-st crane

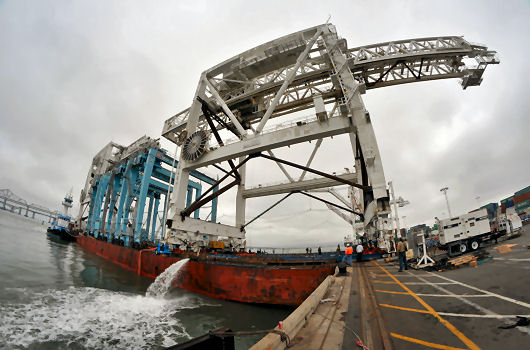

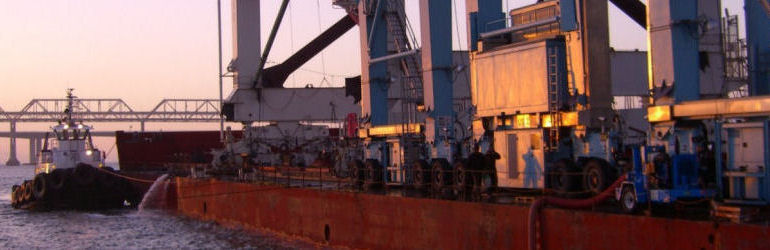

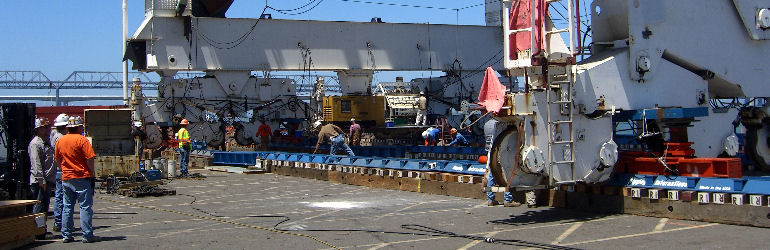

Loading of aft crane in Oakland
Loading of aft crane in Oakland

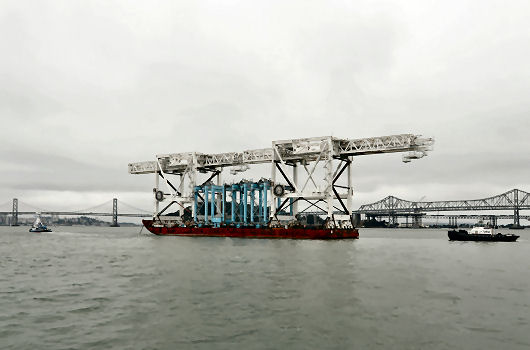

Departure from Oakland
Departure from Oakland
Offloading forward (2-nd) crane
Offloading forward (2-nd) crane

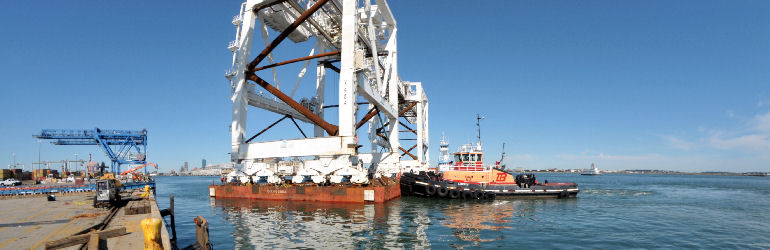

First crane being offloaded from barge

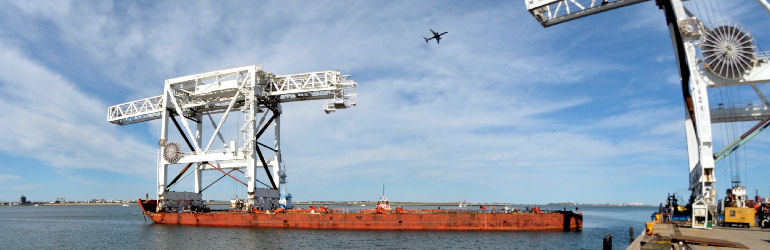

Offloading the aft crane in Boston
