Project Summary

For the transportation of the BP MAD DOG drilling support module (DSM) from Malaysia to the US Gulf,  a custom grillage was
designed. This grillage supported the 2,400 t heavy module at its strong points and guided the loads into the heavy-lift vessel deck
structure. After setting the module onto its grillage supports, it was seafastened to these supports, using simple brackets. The height

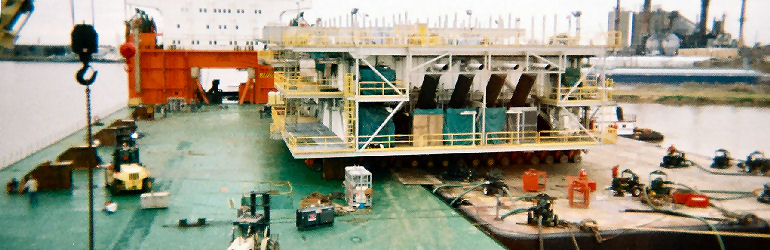

of the support was dictated by the offloading method, which was a roll-off operation, using multi-wheel trailers. In mid December 2003,
the module was successfully loaded and secured onto the heavy-lift ship TEAL.

Argonautics Marine Engineering, Inc. became involved in the design of the grillage only shortly before the load-out. All design
drawings and supporting calculations were delivered on time and within budget.

Scope of Work

The project scope included:

Project Photographs

Photographs courtesy of Pride International.

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Design of the support structures, based on the design loads, vessel deck structure, and height requirements;
Design of the lift-on guides;
Design of the seafastening brackets;
Provide deck lay-out drawings.

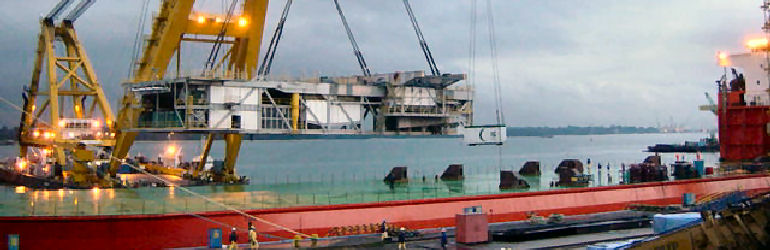

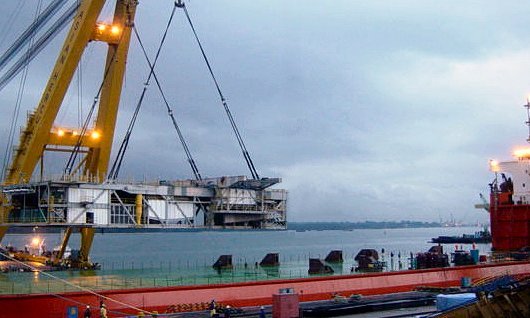

Mad Dog DSM lifted on by floating crane

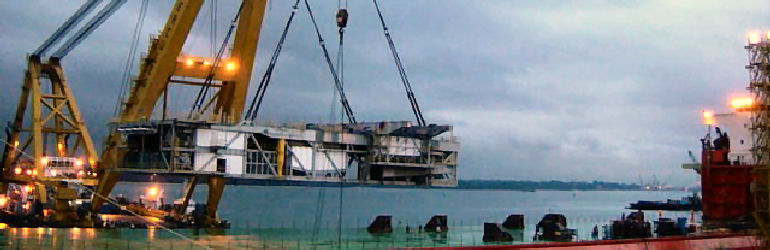

LIfting on the MAD DOG DSM using a floating crane
