Project Summary

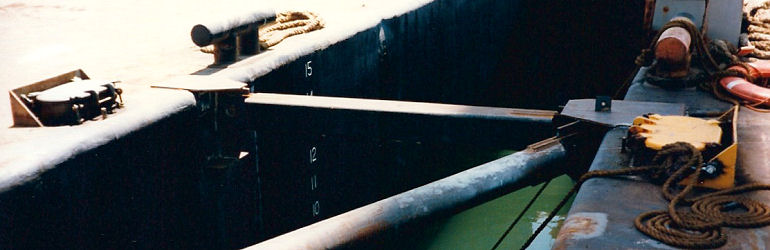

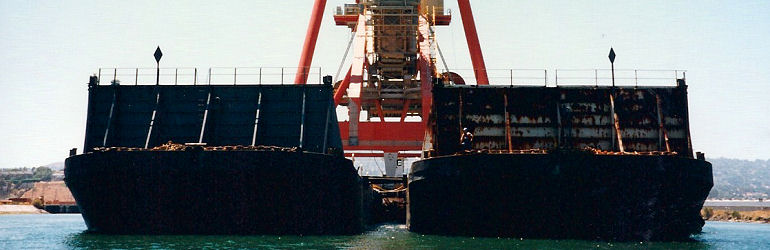

A Krupp coal loader, assembled at the old Todd Shipyard site in Los Angeles by Bickerton Iron Works, was delivered to its final destination at berth 301. For the transport, two 242 x 60 x 16 ft flat top cargo barges were used. These barges were temporarily connected together in a 130 ft wide catamaran configuration with hinged spacer beams and bracings. Once loaded, the Krupp Coal Loader would span both barges. Steel bridge pieces spanned the gap between the barge sterns and the quay.

On July 31, 1997, with incoming tide, the loader was rolled onto the barges and lowered on temporary blocks. Next day, at low tide, the barges were towed under the Vincent Thomas bridge with 8 ft clearance. That same night, just after high tide, the loader was safely rolled off the barges and lowered onto its rails at the new berth.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Modeling of the barge hulls for the ballast analysis;
Provision of design forces for barge connections;
Simulation of the loader roll-on and roll-off operations and optimize ballast procedure;
Provision of on-site assistance during actual operations and controlling of the barge ballast operations.

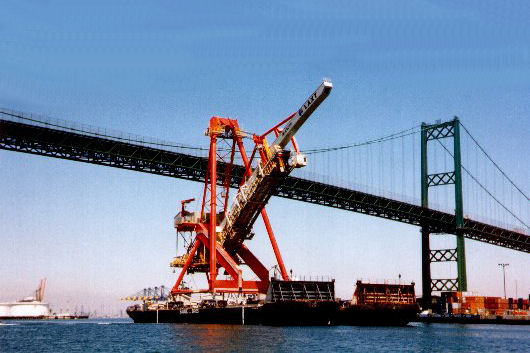

Krupp loader under Vincent Thomas bridge
Krupp loader safely passed under the Vincent Thomas bridge

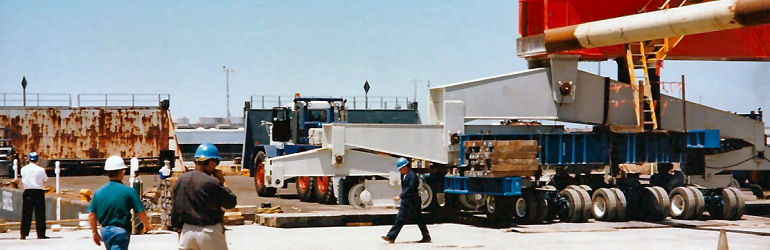

Rolling on over stern
Rolling on over stern
Dolly configuration uder boogie
Dolly configuration uder boogie

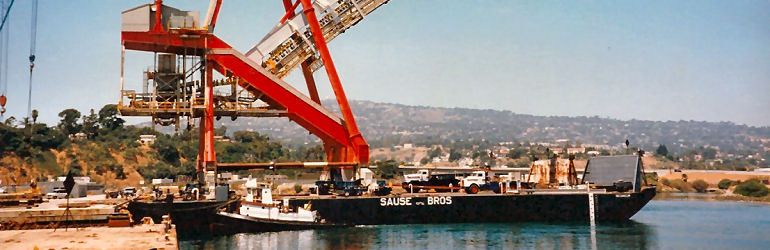

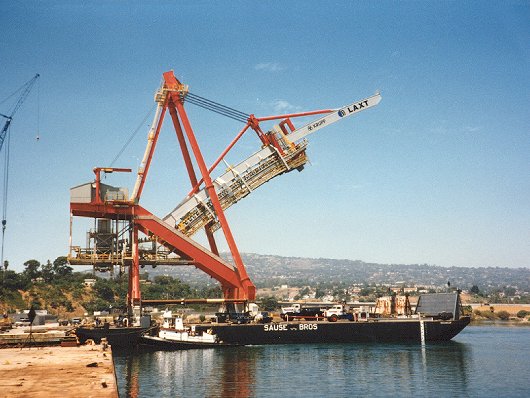

Loading completed
Loading completed

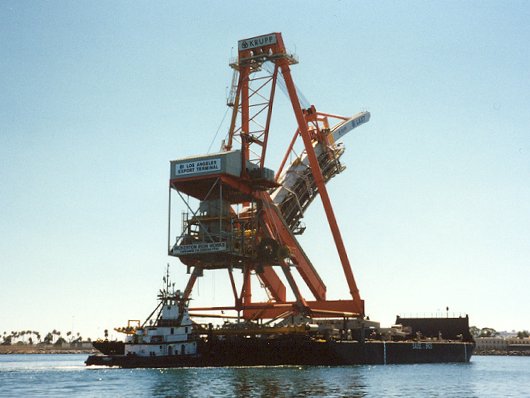

Tow of the barges to Long Beach
Tow of the barges to Long Beach
