Project Summary

A 27 year old Hitachi container crane needed to be relocated from one berth to another berth, both within Los Angeles port limits. The 800 t heavy crane was lifted off its rails using hydraulic dollies. Propulsion was provided by three large trucks. A Crowley 400 x 100 x 20 ft cargo barge was chartered for the move. Steel bridge pieces spanned the gap between the barge stern and the quay.

On December 10, 1999, with incoming tide, the crane was rolled onto the BARGE 419. The barge was then ballasted down to ensure safe passage under the Vincent Thomas bridge at low tide later that same day. Next day, at the beginning of the outgoing tide, the crane was safely rolled off the barge and lowered onto its rails at the new berth.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Modeling of the barge hull for the ballast analysis;
Simulation of the crane roll-on and roll-off operations and optimization of ballast procedures;
Provision of on-site assistance during actual operations and controlling of the barge ballast operations.

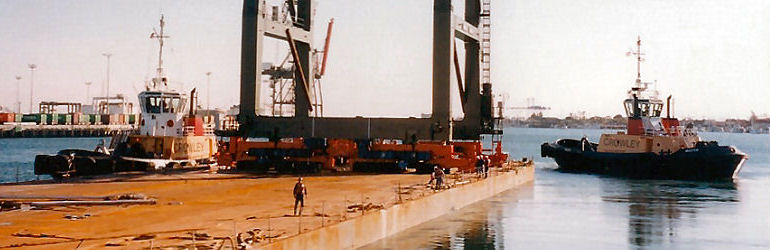

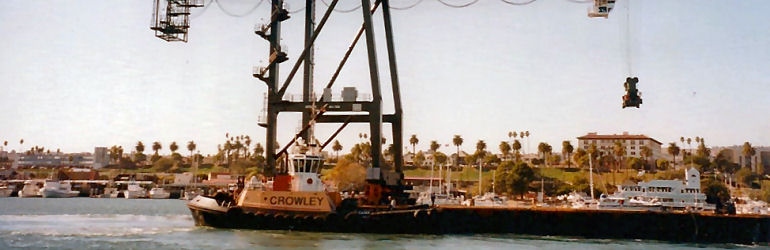

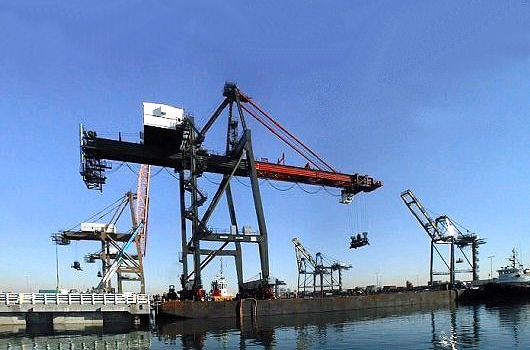

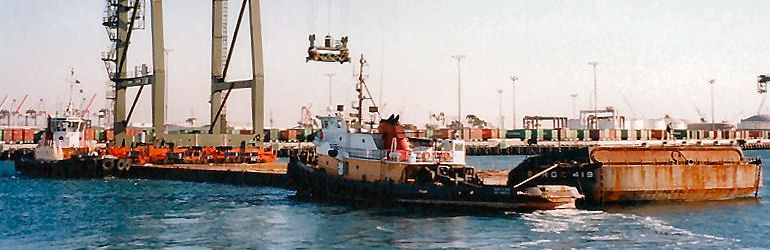

Barge relocating Hitachi crane in LA

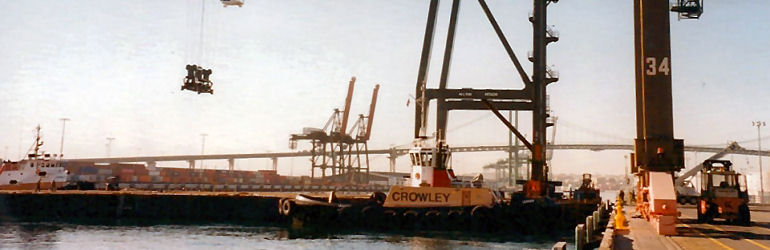

Hitachi crane loaded on stern of Crowley BARGE 419

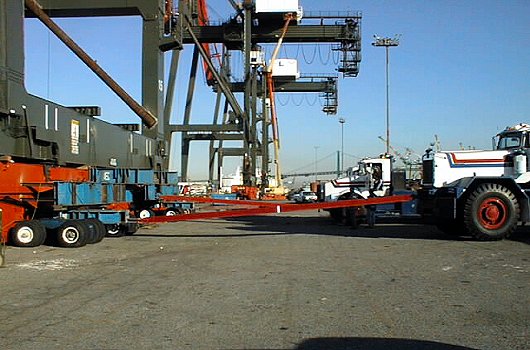

Push trucks
Push trucks

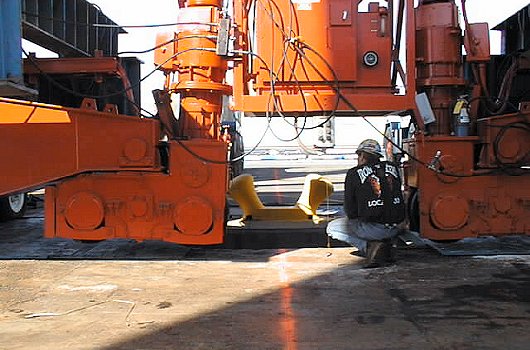

Clearing bollard
Clearing bollard

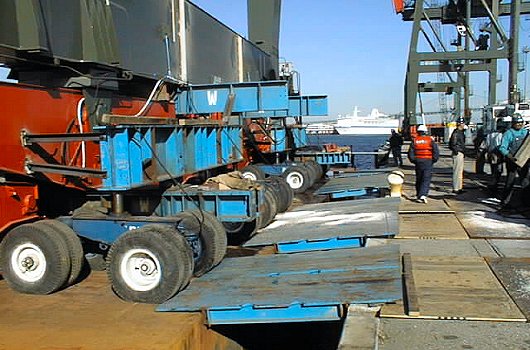

Last dollies on barge
Last dollies on barge

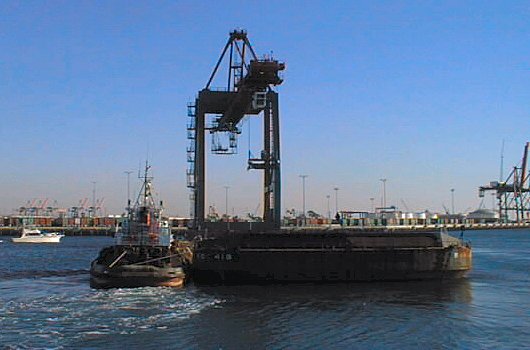

Tow to offloading quay
Tow to offloading quay
