Project Summary

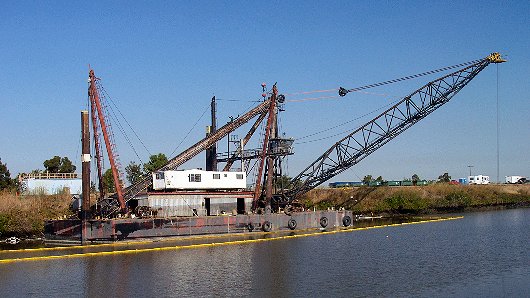

After sinking and re-floating, an old side cast dredge needed to be removed from its lay-up location in Shag Slough, part of the Sacramento river delta. The dredge had a riveted iron hull with a wooden bottom. Since a wet tow to the demolition location at Mare Island was considered too risky, NRC Environmental Services proposed a dry tow solution. By putting the dredge onto a cargo barge, the probability of sinking and causing pollution was eliminated. A suitable cargo barge was location in Seattle and towed to Alameda for preparations. Stand pipes with submersible pumps were installed on four of its ballast tanks. A cribbing arrangement, guideposts, protection posts and  boom support were installed. Meanwhile the dredge was prepared for its final tow.

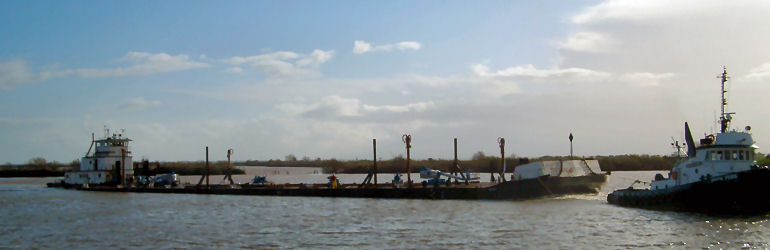

On February 26, 2004, the cargo barge MZB 287 arrived on the loading location and was ballasted down until it rested on the bottom, with sufficient water over deck to allow for positioning the dredge over its cribbing. Next day, the dredge MONARCH was carefully maneuvered over the submersed barge and positioned against the guideposts. By deballasting the barge in accordance with the deballast procedures, the dredge was safely lifted out of the water, while maintaining positive stability. Once the towing condition was reached, the barge was towed to the demolition contractor at Mare Island, only 40 miles down river, making this the shortest dry tow Argonautics Marine Engineering, Inc. was ever involved with...

Scope of Work

The project scope included:


Project Article

This successful removal of the old dredge MONARCH crane was featured in the June 2004 edition of the Foss Maritime's newsletter "Tow Bitts".


Photographs courtesy of Foss Maritime.

Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Verify feasibility of selected non-submersible cargo barge;
Design detailed ballast procedures for safe sinking and re-floating of the cargo barge;
Design cribbing arrangement;
Design positioning guideposts and stand pipe protection posts;
Design dredge boom support;
Provide on-site assistance during the float-on and deballast operation.

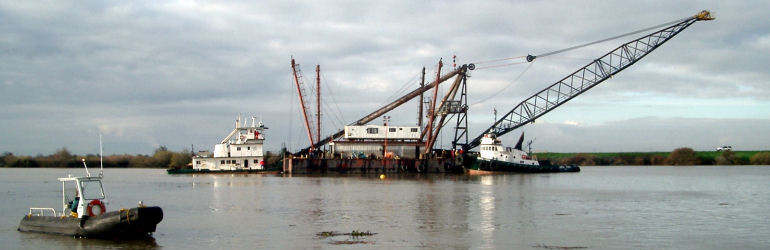

Positioning over submersed barge
Positioning over submersed barge

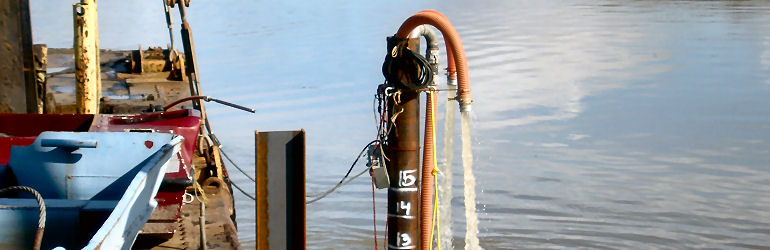

Deck out of water
Deck out of water

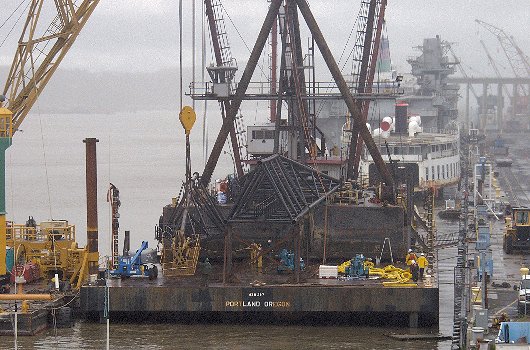

Removal of boom tip
Removal of boom tip

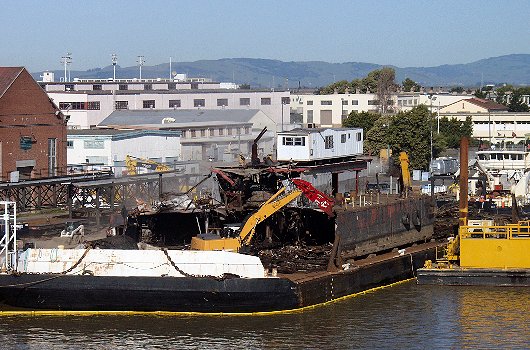

Scrapping at both ends
Scrapping at both ends

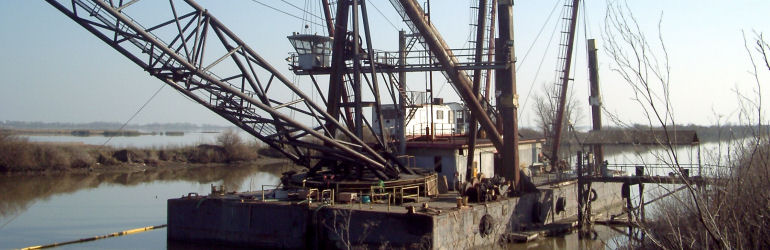

Dredge Monarch after the salvage
Dredge MONARCH after the salvage, waiting to be moved to the scrapyard
