Project Summary

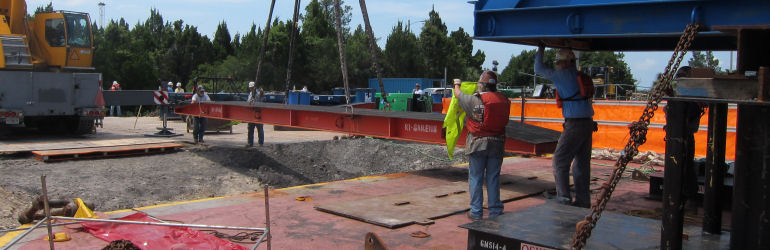

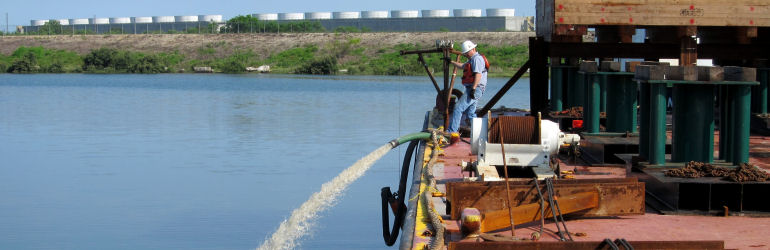

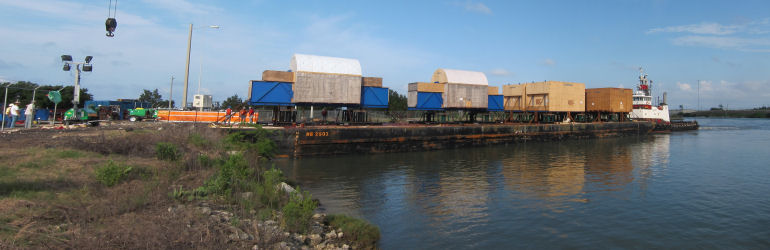

In June 2012, Argonautics Marine Engineering, Inc. provided on-site assistance during the offload of 2  Siemens low pressure turbines delivered by cargo barge MB 2501 to the Crystal River 3 Nuclear Power Plant in Crystal River, FL. Each steam turbine was broken down in a lower casing, an upper casing, and a 168 t heavy rotor. The barge was grounded at high water with its bow against the river bank at a special prepared area. Steel ro/ro ramps were used to span the gap to the shore. The large parcels were rolled off one after the other, using either 6 or 12 axle Kamag trailers. During the offloads, the barge was ballasted to maintain ground reaction and minimize any list.

During these offload operations, on-site support was provided to the offload contractor.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Design the ballast procedures for the turbine parts offloads;
Provide on-site assistance during the actual offload operations;
Provide comprehensive report on the offload operation.

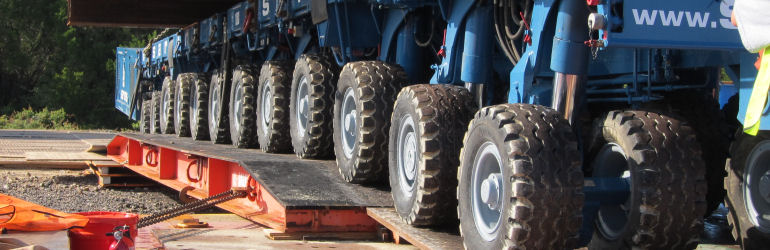

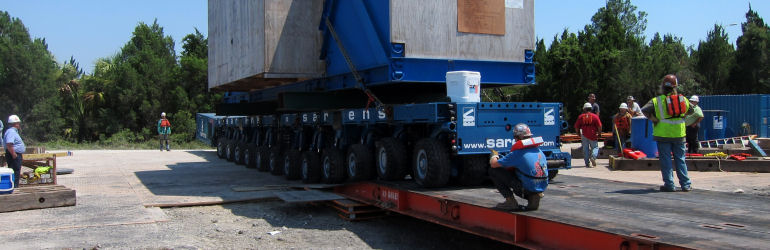

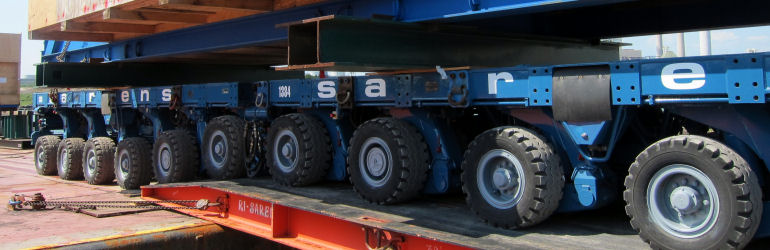

Turbine rotor rolled off over steel ramp
First turbine rotor picked up and ready to roll

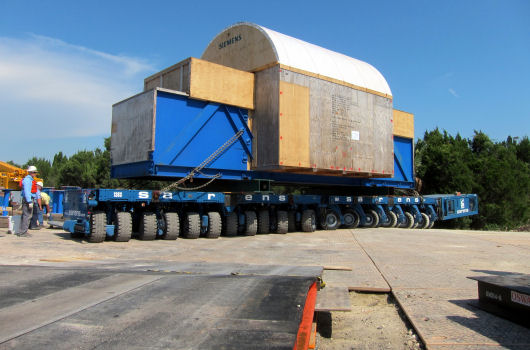

Turning Turbine Rotor in place
Turning Turbine Rotor in place

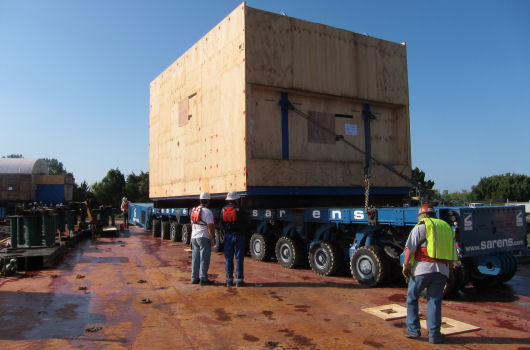

Rolling Lower Casing to ramp
Rolling Lower Casing to ramp

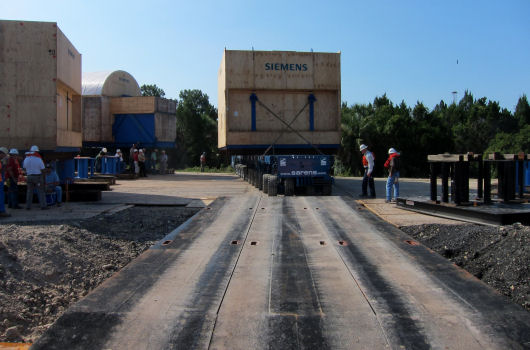

Rolling Lower Casing on shore
Rolling Lower Casing on shore

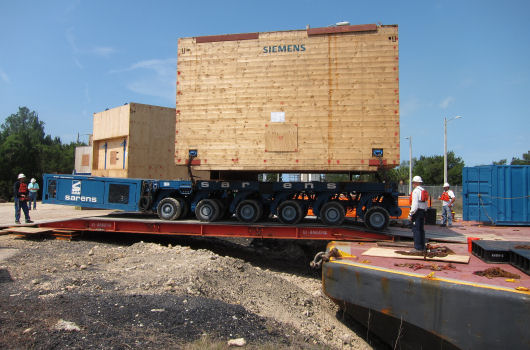

Rolling Upper Casing off
Rolling Upper Casing off
