HITACHI CRANE RELOCATION IN LOS ANGELES

Project Summary

To make room for new 4-th generation container cranes, a 25 year old Hitachi container crane needed to be relocated from one pier to another pier, both within Los Angeles port limits. The 800 t heavy crane was lifted off its rails using dollies. Propulsion was provided by two winch trucks. The 300 x 90 x 22 ft cargo barge NEHALEM was chartered for the move. Steel bridge pieces spanned the gap between the barge stern and the quay. On March 19, 1997, with incoming tide, the crane was rolled onto the barge and temporary secured to the deck. Next day, at the end of the outgoing tide, the crane was safely rolled off the barge and lowered onto its rails at the new pier.

Scope of Work

The project scope included:

Project Photographs

specialists in marine heavy-lift transportation engineering

naval architects

marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run

Est. 1992

■	Modeling of the barge hull for the ballast analysis;
■	Simulation of the crane roll-on and roll-off operations and optimization of ballast procedures;
■	Provision of on-site assistance during actual operations and controlling of the barge ballast operations.

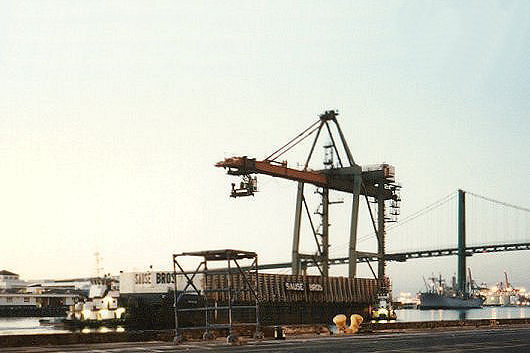

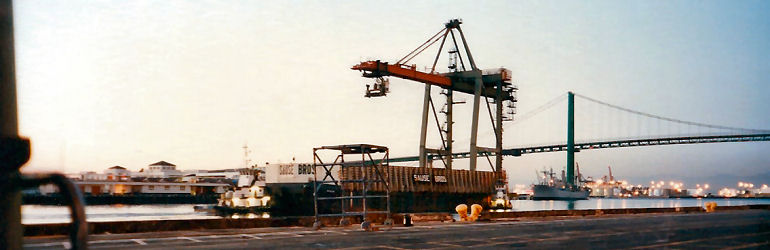

Hitachi crane loaded on stern of Sause Bros barge NEHALEM

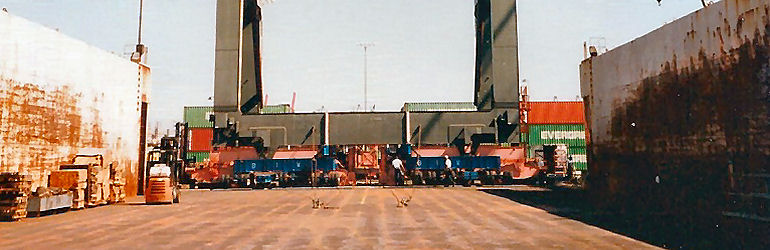

First dollies rolled onto the barge

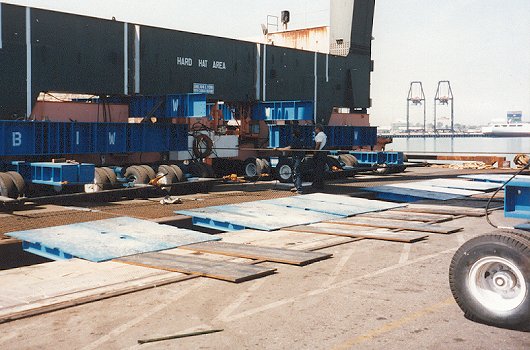

Aft waterside dollies on the barge

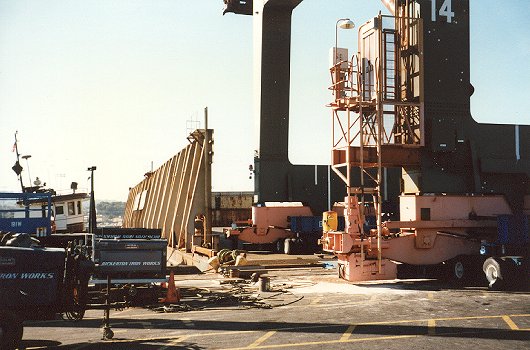

Waterside of crane completely on the barge

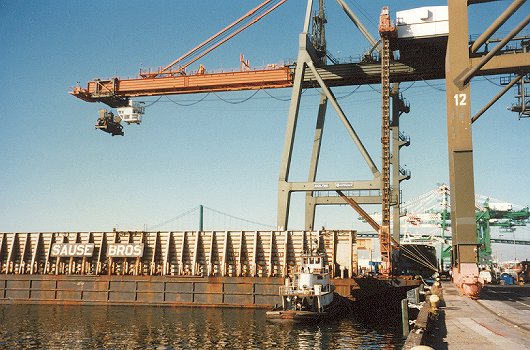

Crane completely on barge
