Project Summary

The GlobalSantaFe jack-up rig CONSTELLATION I needed to be moved from its construction yard in Singapore to Trinidad. Because of the long legs (167 m), the dry transport option was selected with its inherent higher transit speed and reduced motions in seaways. Since this would be the first time a Friede & Goldman JU 2000 class rig was dry transported and the stability after loading was marginal, it was considered prudent to have a qualified naval architect on site in case the actual numbers would show a significant deviation from the theoretical numbers.

On March 22, 2004, the rig was towed to and accurately positioned over the submersed heavy-lift ship TRANSSHELF. The ship slowly deballasted, and with a controlled small trim and list, the 19,000 t heavy CONSTELLATION I was slowly lifted out of the water. The final sailing condition showed adequate stability and after seafastening of the rig, the ship departed.

Scope of Work

The project scope included:


Project Photographs

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Provide design environmental criteria for the transport;
Verify transportation weight and center of gravity in office, and on-site;
Study sensitivity of VCG variations on the stability of the heavy-lift ship;
Simulate deballasting operation with varying trim conditions;
Standing by on-site during the actual load-out of the rig.
CONSTELLATION I successfully loaded on the TRANSSHELF

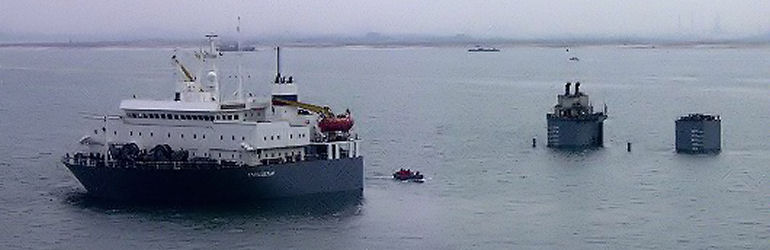

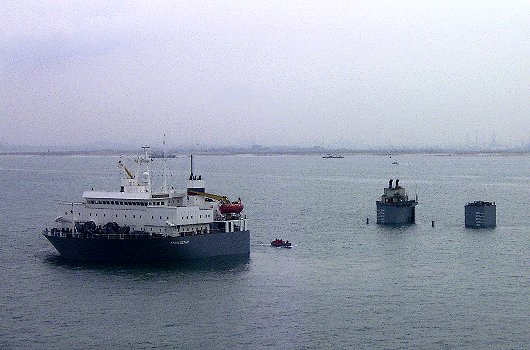

Transshelf ready to receive the rig
Transshelf ready to receive the rig

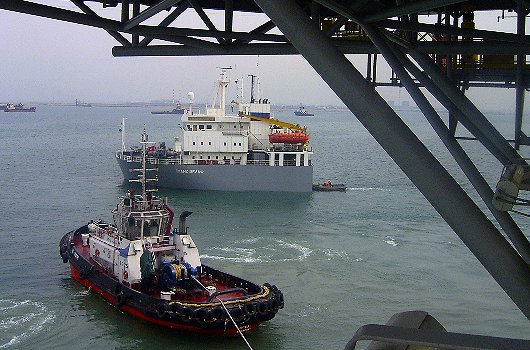

Approaching the submersed heavy-lift vessel
Approaching the submersed heavy-lift vessel

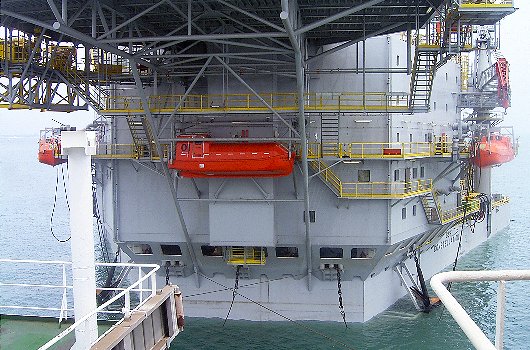

Bow in position over ship
Bow in position over ship

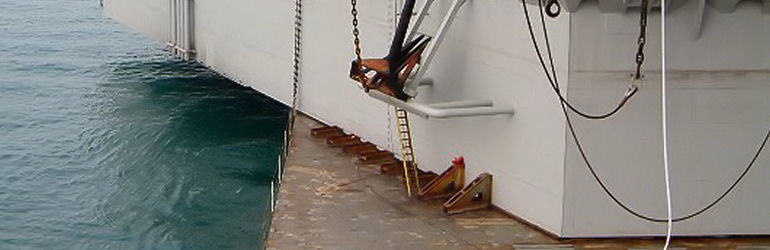

Seafastening at stbd bow
Seafastening at stbd bow
