ARKANSAS STEAM GENERATORS OFFLOAD CALCULATIONS

Project Summary

To replace 2 old steam generators at the Arkansas Nuclear One power plant, 2 new generators, each weighing approx. 550 t, were delivered on the cargo barge PAUL BUNYAN in June of 2000. At a special prepared unloading slip off Lake Dardanelle, the barge was carefully ballasted down and grounded. Hydraulic multi-wheel trailers were rolled onboard and each generator was rolled off and moved to a temporary storage area for installation later.

Detailed procedures were provided to pre-ballast the barge, ground the barge and maintain adequate and safe bottom reaction throughout the two roll-off operations.

Scope of Work

The project scope included:

Project Photographs

Photograph courtesy of Rigging International, Inc.

specialists in marine heavy-lift transportation engineering

naval architects

marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run

Est. 1992

■	Detailed ballast procedure for grounding the barge and maintaining bottom reaction;
■	Ballast procedure to re-float the barge after completion of the roll-off operations.

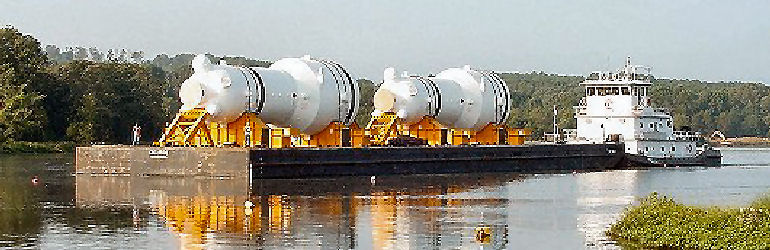

Arkansas steam generators arriving by barge

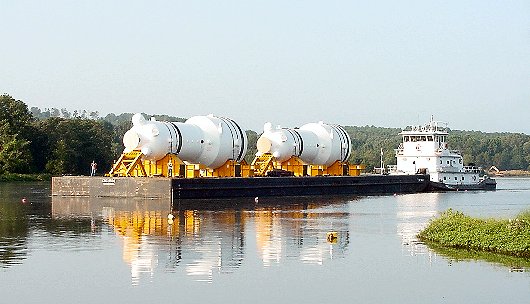

Generators arriving on the cargo barge PAUL BUNYAN
