Project Summary

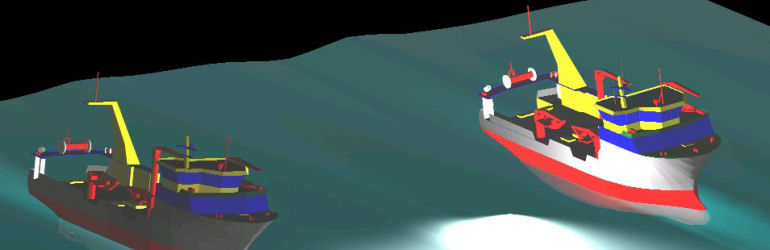

During a transit from New Orleans to Seattle, via Panama Canal, the 200 ft catcher boat AMERICAN CHAMPION suffered an engine breakdown, causing it to drift for 7 hours, without power, off the coast of El Salvador. During this period, a shipyard worker riding the boat was knocked over while getting up from his bunk and picking up his shoes. He sued the ship owner for damages, blaming excessive ship motions, caused by the inability to control course during the breakdown. The ship motions were reconstructed basis the actual experienced weather conditions and acceleration levels in various cabins were calculated. As it turned out, the ship motions were rather mild with a maximum roll angle of only 6.3 deg, combined with a natural roll period of 12 s. The corresponding acceleration levels were also small. To illustrate the relatively small roll angle, a photo-realistic plot of the catcher boat rolling 6.3 deg in beam seas was made, using AutoCAD®, see also above.

Using 3D Studio Max®, a 1.5 minute long real-time animation showing the ship rolling and heaving in the experienced seaway was produced. The court case was settled however, before this animation could be presented.

Scope of Work

The project scope included:


Project Photograph

specialists in marine heavy-lift transportation engineering
naval architects
marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run
Est. 1992

Copyright © 2012 Argonautics Marine Engineering, Inc. - All Rights Reserved
Home  Services  |  Projects  |  News  |  Clients  |  Publications  |  References  |  About Us  |  Contact Us  |  Client Login  |

Reconstructing most probable ship motions during period ship was drifting due to main engine failure;
Analyzing sensitivity of sea state conditions and wave heading;
Calculation of ship bound acceleration levels in the cabin where the alleged accident took place;
Presenting the results in 3D plots, clearly illustrating the magnitude of ship motions to laypersons;
Provision of comprehensive expert witness report.
The first 2 jumpers loaded on the North Vanguard

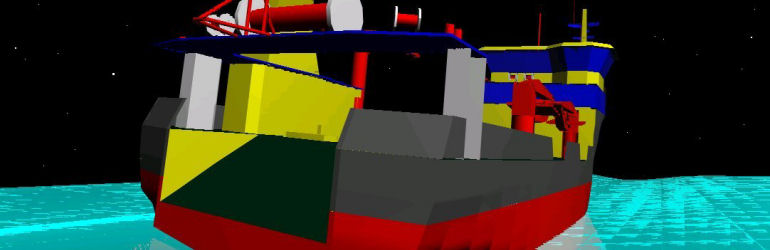

Annimated AMERICAN CHAMPION rolling gently in beam seas
