FEASIBILITY OF DRY DOCK TOW

Project Summary

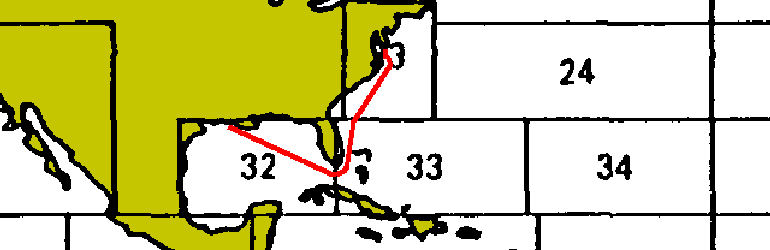

In the summer of 2005, the two AFDB-9 dry dock sections were wet towed from Philadelphia, PA, to Galveston TX. Each dock section measured 350 x 229 ft. A wet tow feasibility study was performed, including a detailed stability analysis (intact and damaged) and hull bending moment calculation in waves. After a long tow, with a stop over in Key West to avoid some hurricanes, the dock sections safely arrived in Galveston and were put to work.

Scope of Work

The project scope included:

Project Photograph

specialists in marine heavy-lift transportation engineering

naval architects

marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run

Est. 1992

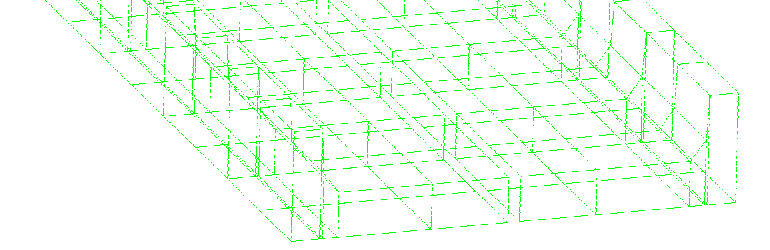

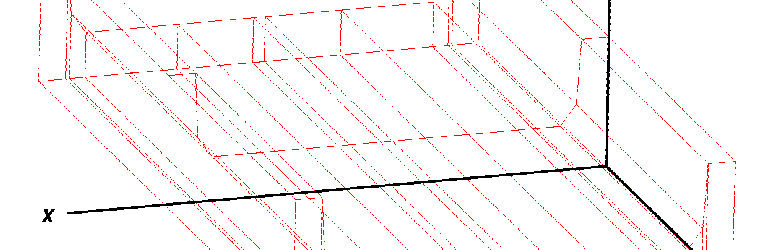

■	Review intact and damaged stability of each section;
■	Establish design environmental criteria for the tow;

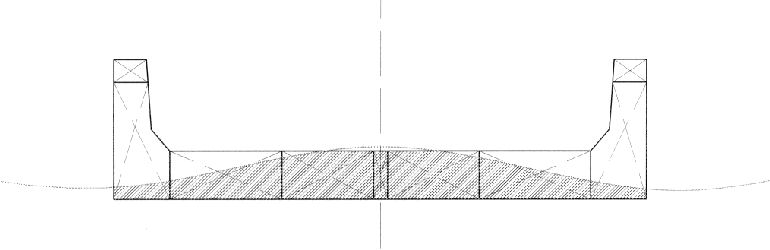

■	Check strength of each section subject to wave bending;
■	Estimate required bollard pull for the tow.

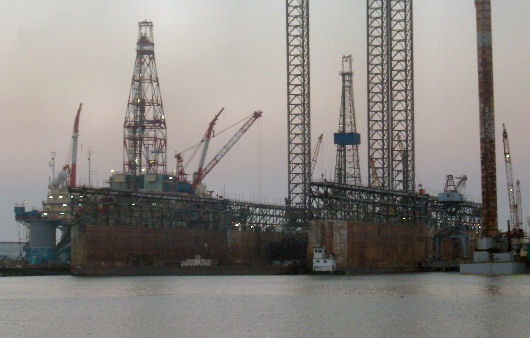

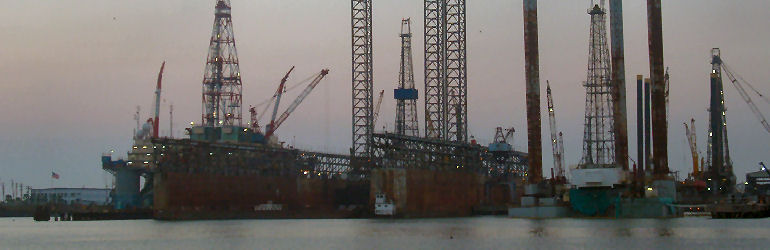

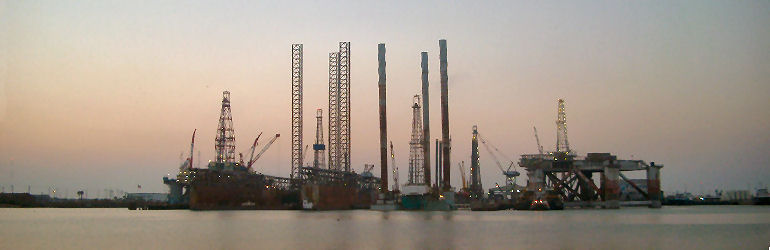

Dry dock in operation in Galveston
