SURVEY DRY TRANSPORT OF LIFT BOAT HAMAD EAGLE

Project Summary

The 245 class three-legged lift boat HAMAD EAGLE (ex SEACOR EAGLE) was dry transported from the port of Houma, LA, to

offshore Cabinda, Angola, using the semi-submersible heavy-lift ship YACHT SERVANT. Argonautics Marine Engineering, Inc.

provided the review of the Transport Manual and the marine warranty survey for this transport for ACS Chartering, division of UTC

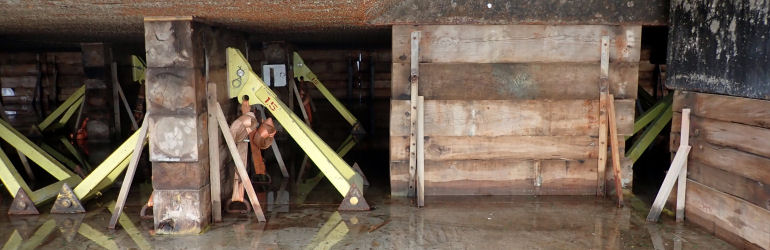

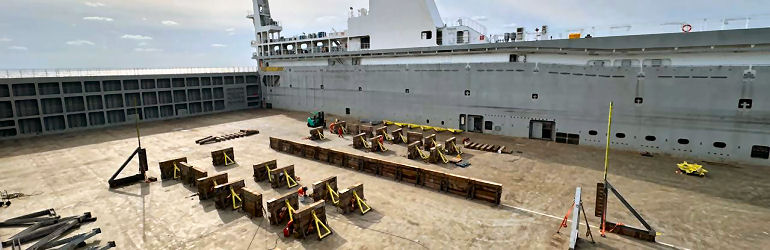

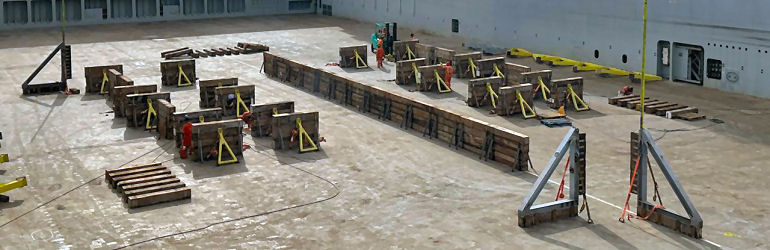

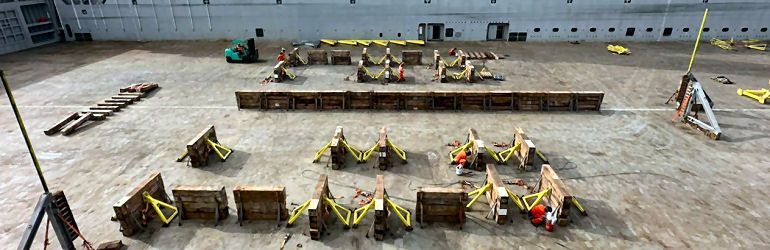

Overseas. In December 2023, the cribbing arrangement on the YACHT SERVANT was checked and approved, after which the vessel

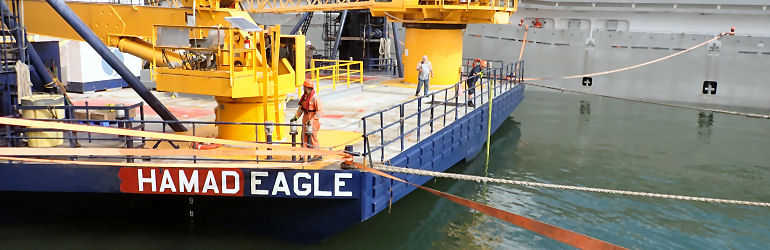

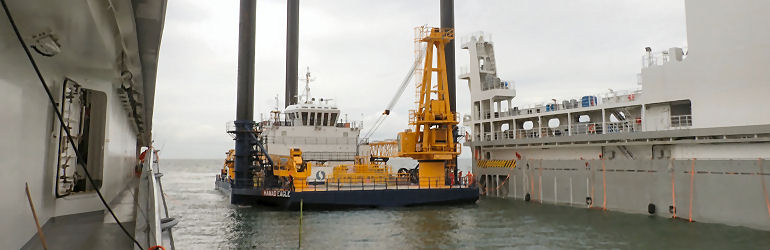

was ballasted down to loading draft. Early next morning, the HAMAD EAGLE was towed to the submersed vessel and slowly moved

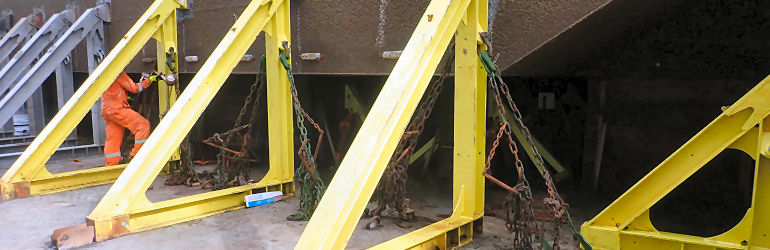

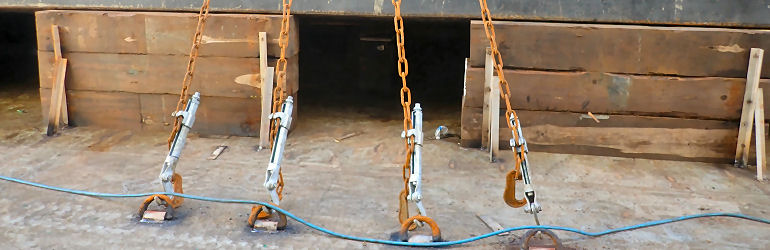

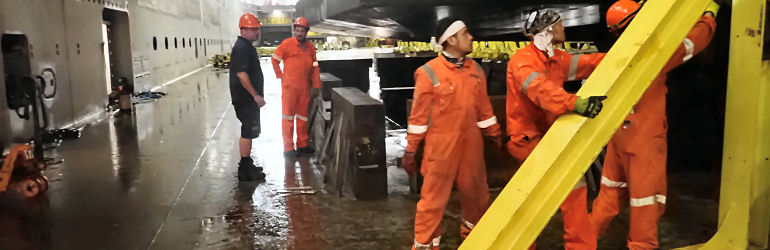

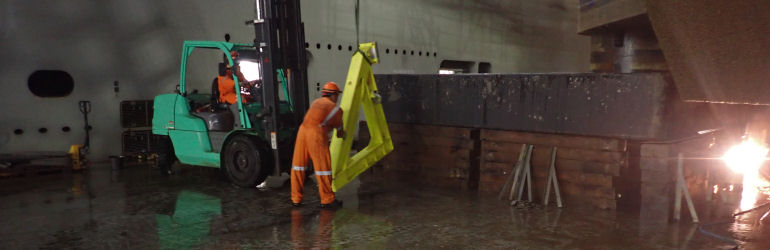

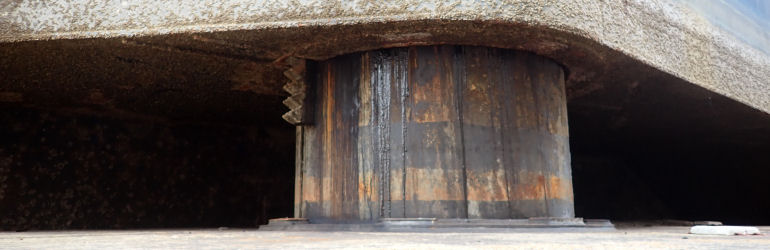

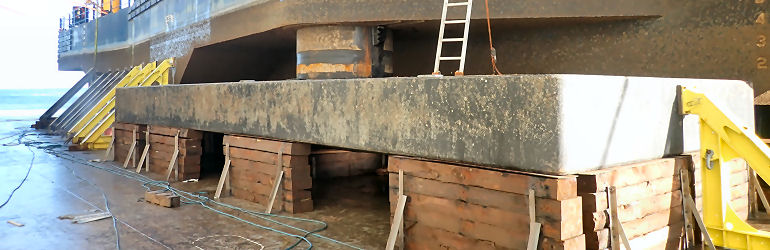

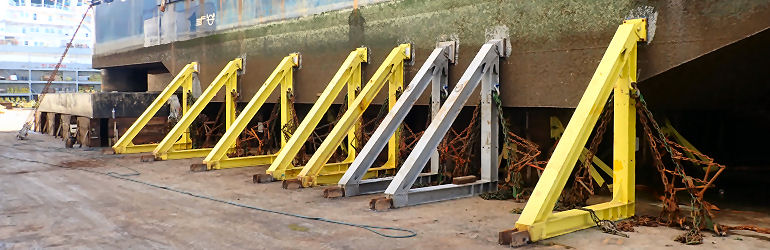

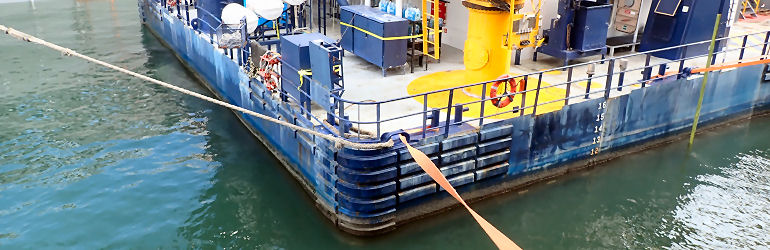

inside the dock, using its own thrusters, and positioned over its cribbing. After deballasting, the vessel crew installed all the

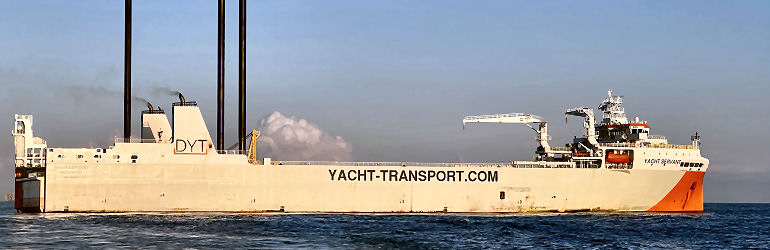

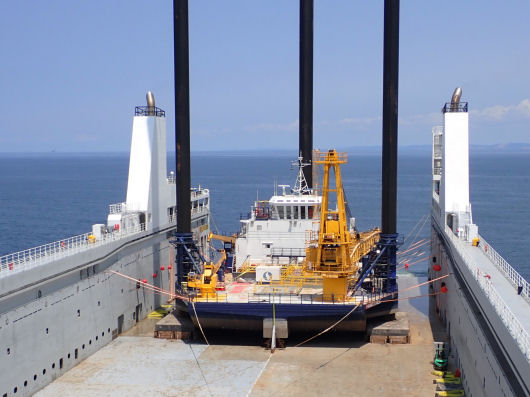

seafastening stoppers and uplift lashings. After final inspections and issuing of the Certificate of Approval, the YACHT SERVANT

departed with destination Angola.

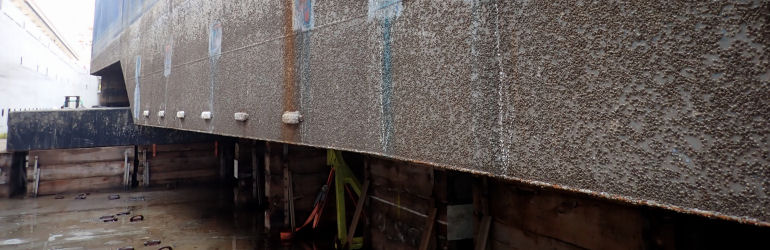

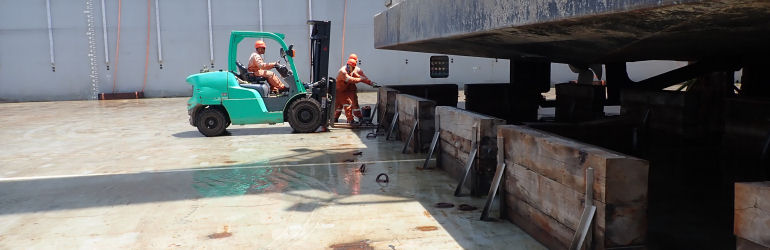

In Angola, all seafastenings and lashings were removed by the crew, and the cribbing and lift boat hull was surveyed before the

heavy-lift vessel ballasted down to offload the lift boat. Once fully afloat, the HAMAD EAGLE was successfully floated off using winch

wires and its own propulsion.

The project scope included:

specialists in marine heavy-lift transportation engineering

naval architects

marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run

Est. 1992

■

Suitability check of the YACHT SERVANT for the proposed transport;

■

Review of the various revisions of the Transport Manuals;

■

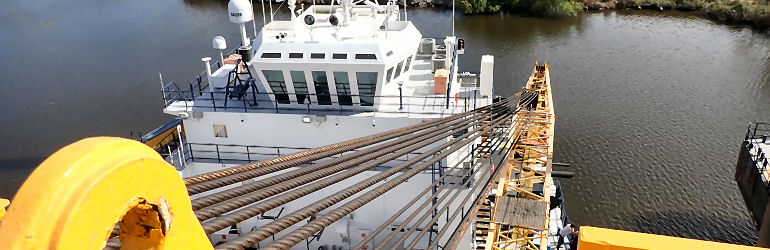

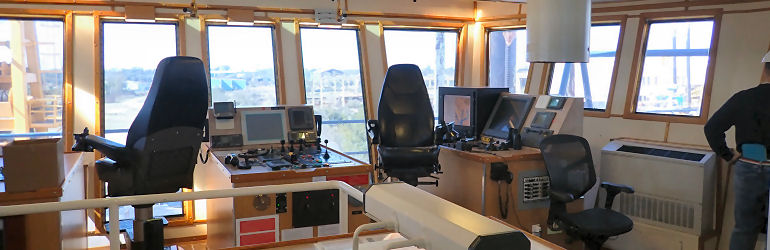

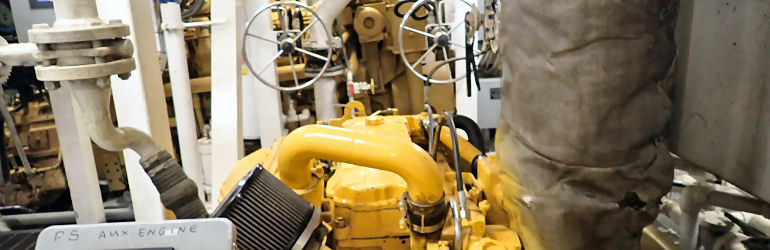

Survey the HAMAD EAGLE before loading;

■

Attend various meetings and the actual loading of the lift boat onto the heavy-lift vessel;

■

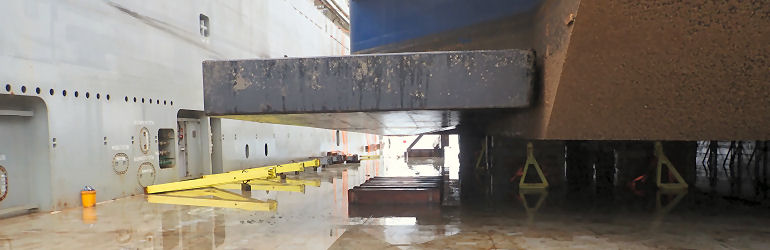

Survey the cribbing (before and after loading) and the seafastenings and issue COA;

■

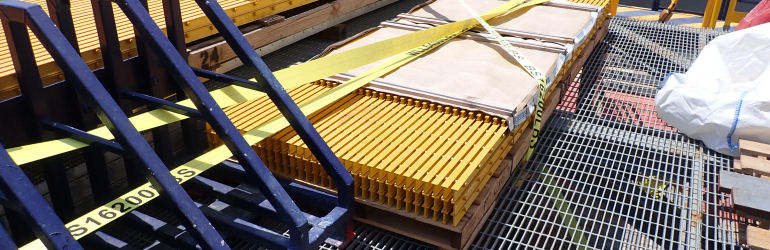

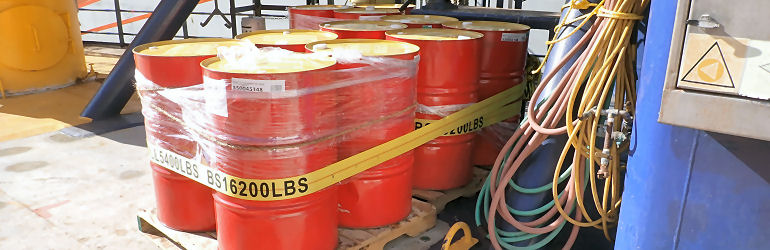

Survey the internal lashing and securing of all loose items in and on the HAMAD EAGLE;

■

Attend the offloading operation and survey the HAMAD EAGLE after arrival in Angola.

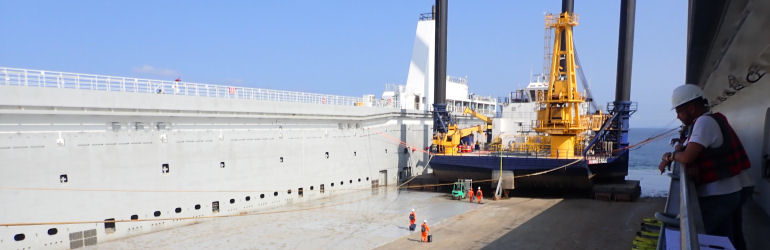

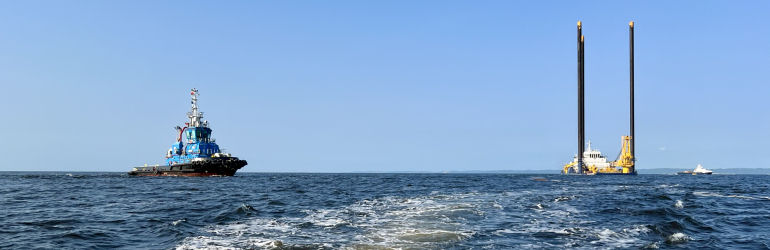

The lift boat HAMAD EAGLE before floating off in Angola

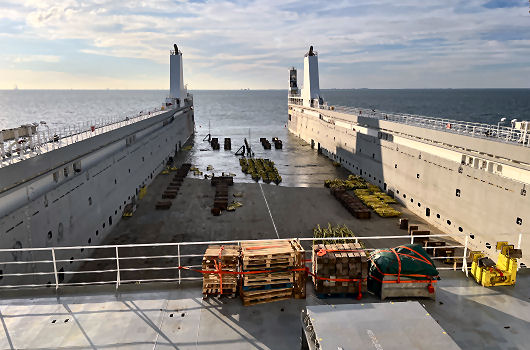

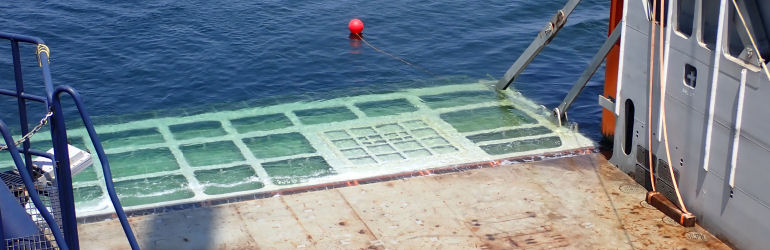

YACHT SERVANT submersing for loading

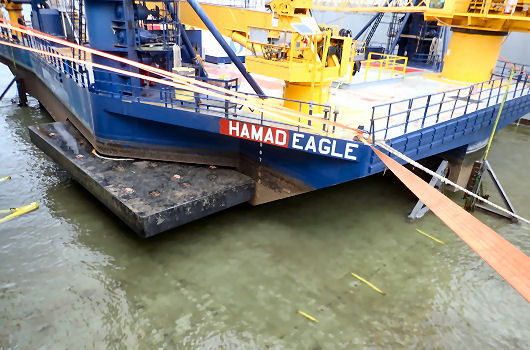

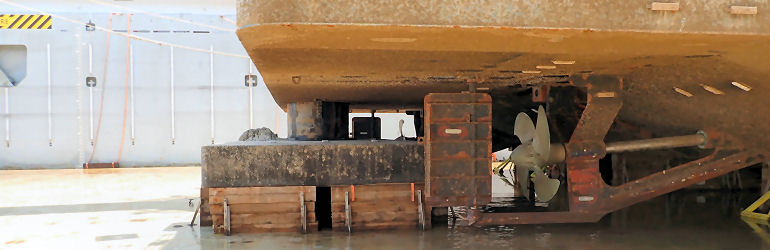

HAMAD EAGLE slowly lifted out of water

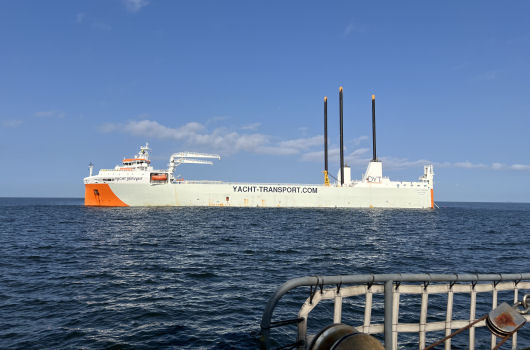

Ready to board YACHT SERVANT in Angola

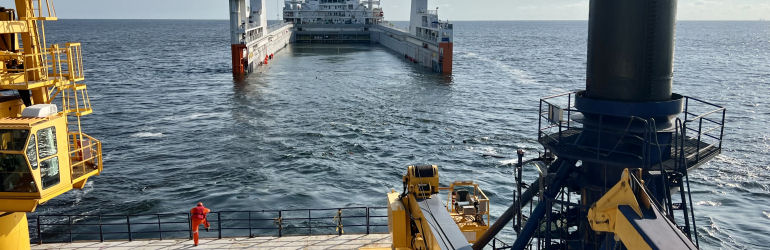

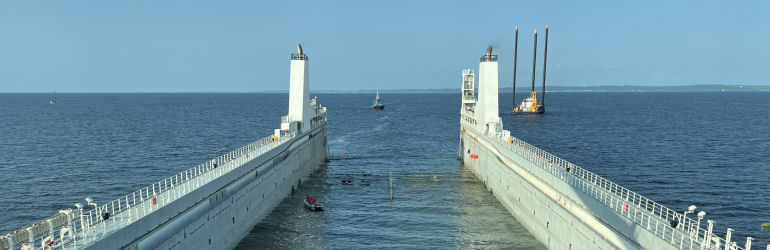

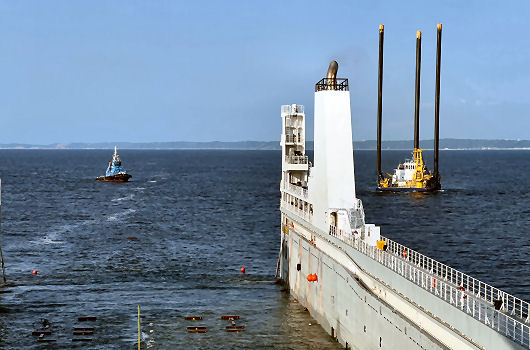

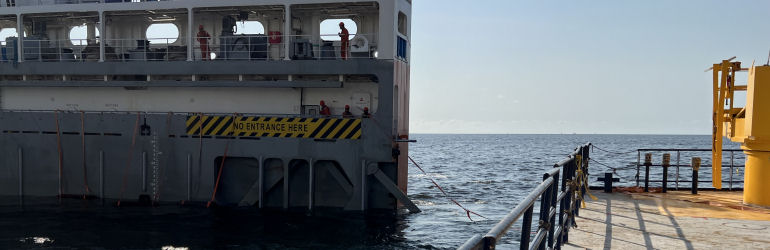

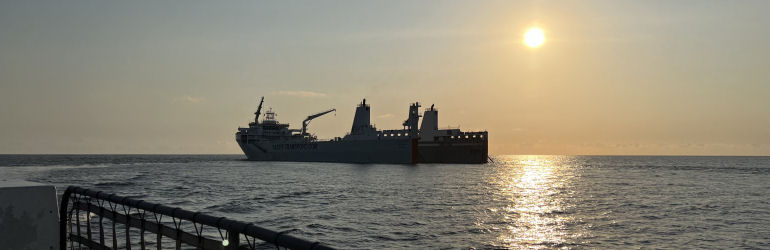

HAMAD EAGLE safely floated out of dock
