SURVEY DRY TOW DREDGE FLORIDA

Project Summary

To relocate the Great Lake Dredge & Dock Company's electric dredge FLORIDA and associated equipment from Oakland, CA, to

Brunswick, GA, the submersible barge MARMAC 400 was used. All equipment was floated over the barge, which was submersed

using the San Francisco dry dock. After re-floating the barge, the dredge, crane barge, reel barge, and anchor barge were

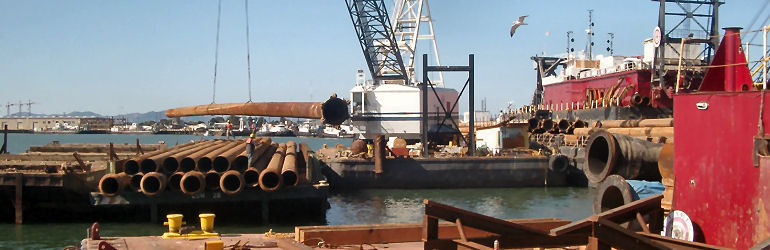

seafastened, using custom built steel chocks. Using a floating crane, the pipes were loaded.

Early November 2005, upon receipt of the tow approval certificate, the 3,400 hp tug SEA ISLANDER made fast and the tow departed

Oakland with destination Brunswick, via Panama Canal.

The project scope included:

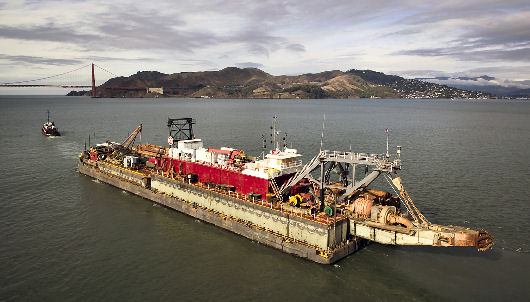

Aerial photograph courtesy of Great Lake Dredge & Dock Company.

specialists in marine heavy-lift transportation engineering

naval architects

marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run

Est. 1992

■	Review barge ballast calculations and cribbing and seafastening calculations;
■	On-hire survey of the cargo barge MARMAC 400;

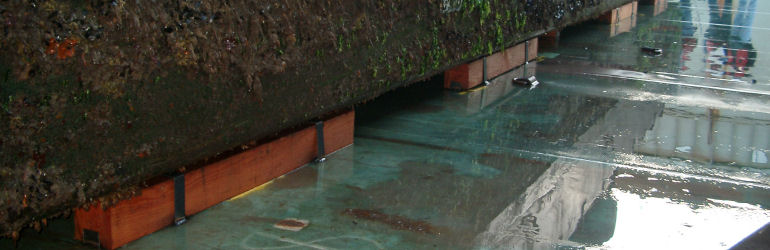

■	Check cribbing arrangement as laid out on barge deck;
■	Attend loading operation of barge inside the dry dock;

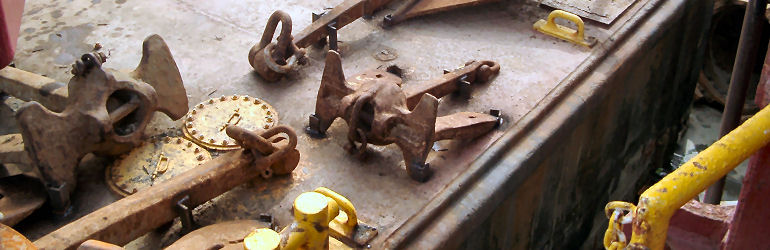

■	Survey the dredge and equipment with respect to tow readiness and internal securings;

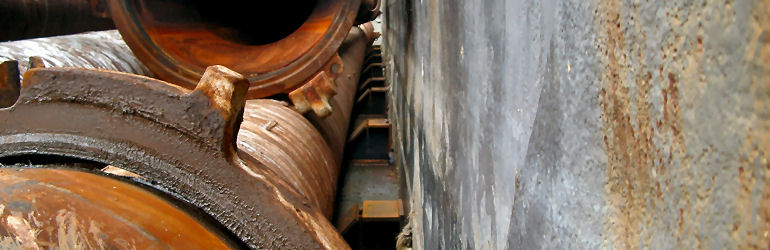

■	Survey the seafastening installation;

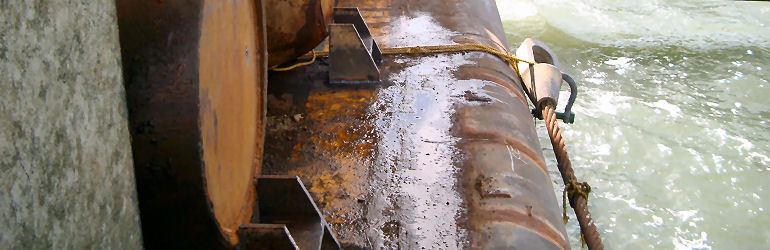

■	Inspect the tug SEA ISLANDER and its towing connections.

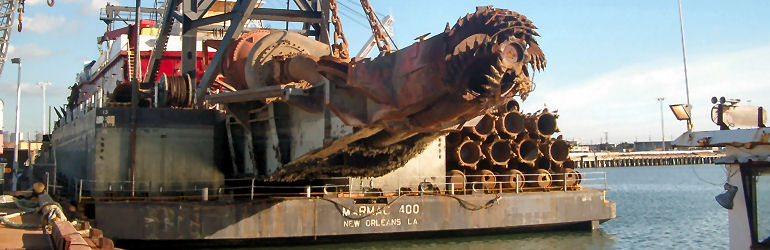

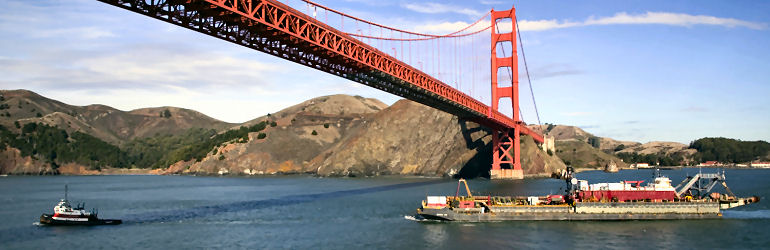

The loaded MARMAC 400 leaving the San Francisco Bay

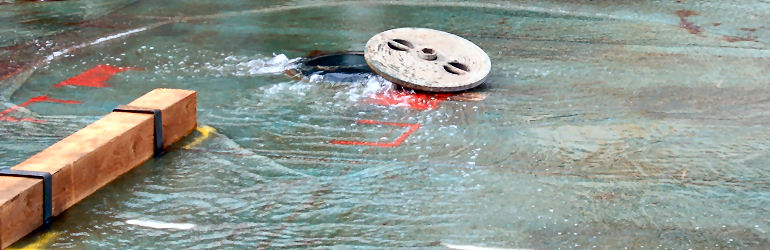

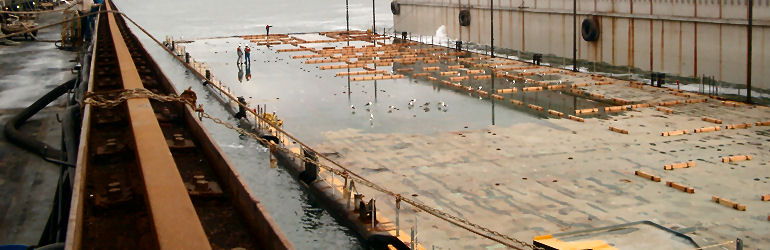

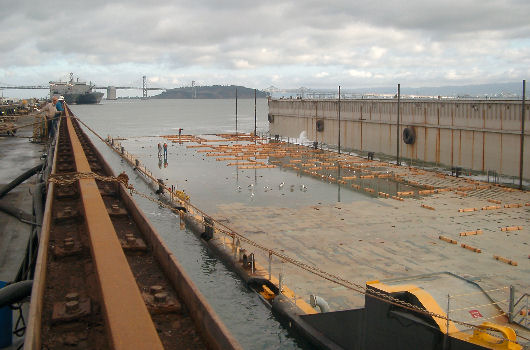

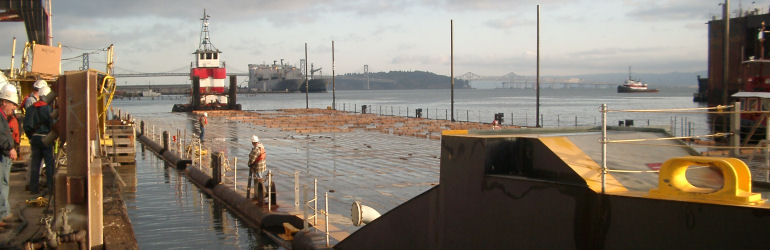

Submersing barge in dry dock

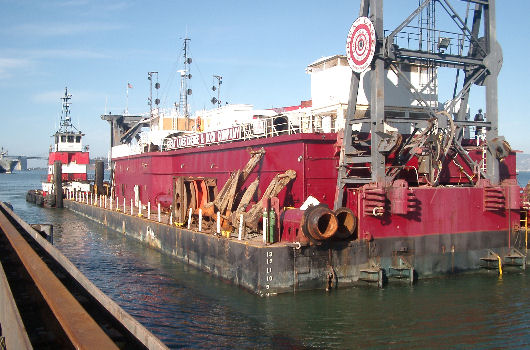

Float over dredge

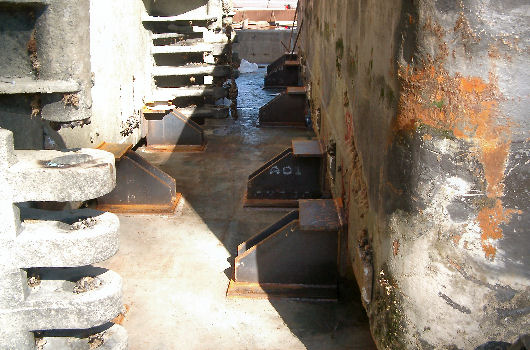

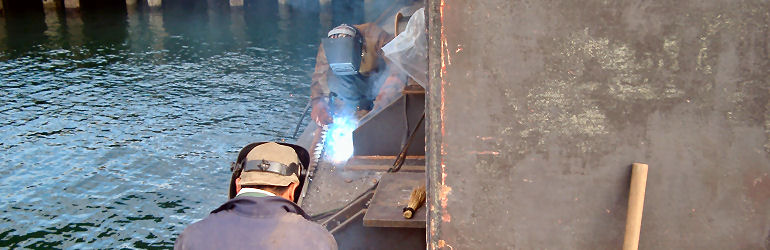

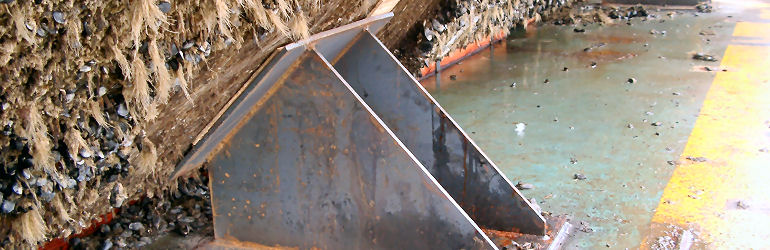

Seafastening hulls

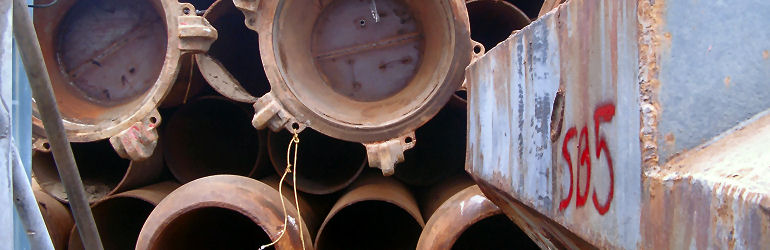

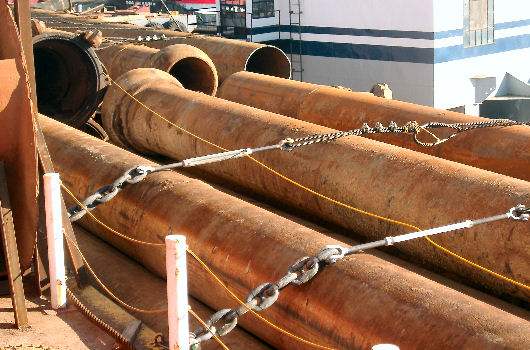

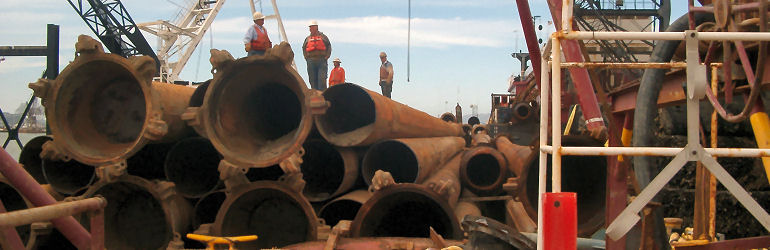

Lashing of pipes
