INSTALLATION SAN JOAQUIN PEDESTRIAN BRIDGE

Project Summary

Using a Manitowoc 888 Series 2 crawler crane on a 210 x 54 x 13.5 ft cargo barge, a new pedestrian bridge was installed over the San Joaquin River in September 2004. The crawler crane was first rolled onto the barge, after which it picked the bridge in 3 separate sections from the shore for assembly into a single 200 ft long piece on the side of the barge. After assembly, the barge with crane and bridge was maneuvered into place. The complete 100 t bridge section was then lifted up and rotated until is was over its end supports and installed. During the crane rotation, the barge was ballasted to limit its list. Because of the poor condition of the barge, heavy steel beams were used to support the crawler crane.

Scope of Work

The project scope included:

Project Photograph

specialists in marine heavy-lift transportation engineering

naval architects

marine surveyors

If you can read this and do not see a MENU here, please allow for scripts to run

Home

Services

Projects

News

Clients

Publications

References

About Us

Client Login

	Heavy-Lift Transportation Engineering
	On-Site Assistance
	Marine Surveys
	Marine Salvage Engineering
	Forensic Engineering
	Other Marine Services

	Transportation Projects
	Load-Out and Relocation Projects
	On-Site Marine Projects
	Marine Survey Projects
	Marine Salvage Projects
	Legal Projects
	Other Projects

	Downloads
	Software
	Industry Links

Est. 1992

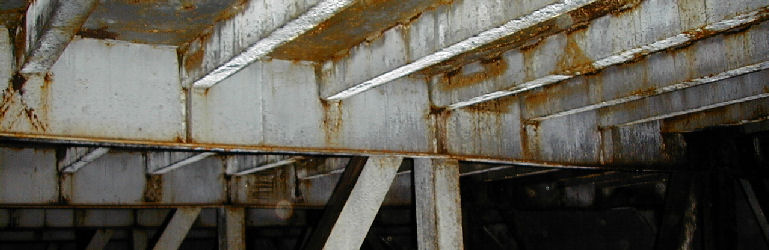

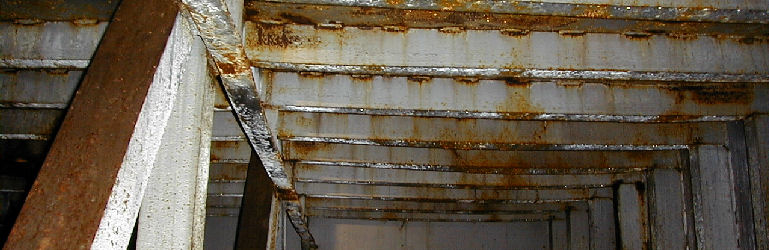

■	Check suitability cargo barge;
■	Stability and ballast calculations for the various phases of the operation;
■	Check hull bending stresses for the various phases of the operation;

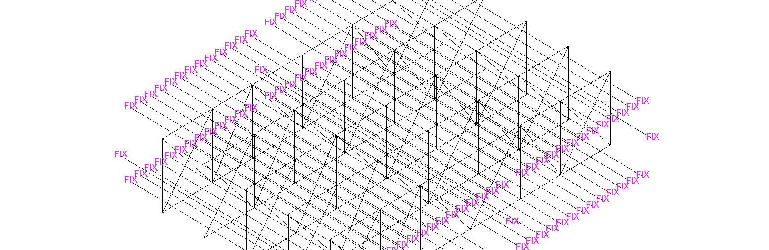

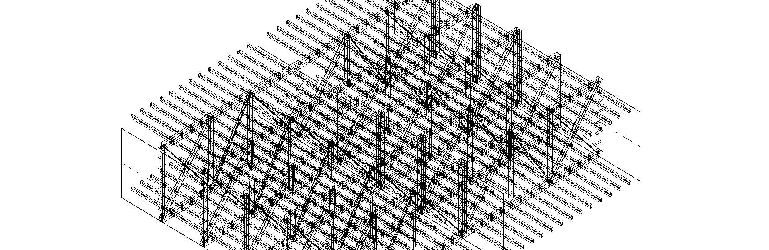

■	Review deck strength analysis.

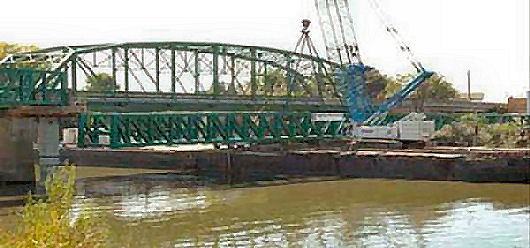

San Joaquin pedestrian bridge installation

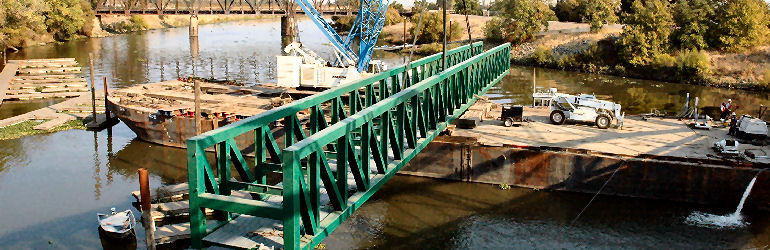

Lifting the assembled bridge for installation
